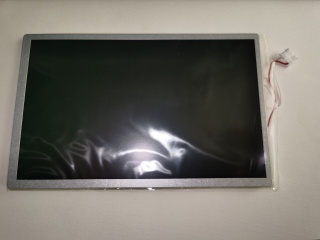

| Nama Wahi | TX20D202VM2BAA |
| Waitohu | HITACHI |
| Rahi | 8.0 |
| Taupānga | Industrial |
| Whakatau | 800×480 |
| Te tito | LCM, a-Si TFT-LCD |
| Tirohanga | |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | , |
| Atanga | LVDS |
| manufacturer | HITACHI |
| model name | TX20D202VM2BAA |
| screen size | 8.0 inch |
| screen type | LCM, a-Si TFT-LCD |
| pixel number | 800(RGB)×480 (WVGA) 116PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 174 × 104.4 (H×V) |
| outline(mm) | - |
| bezel area(mm) | - |
| treatment | Antiglare |
| luminance | - |
| contrast ratio | 600 : 1 (Typ.) (TM) |
| viewing angle | - |
| response | - |
| good view at | - |
| work mode | TN, Normally White, Transmissive |
| color depth | 262K |
| backlight | , No Driver |
| mass | - |
| used for | Industrial |
| signal type | LVDS |
