| Nama Wahi | C080VW05 V0 |
| Waitohu | AUO |
| Rahi | 8.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | AUO |

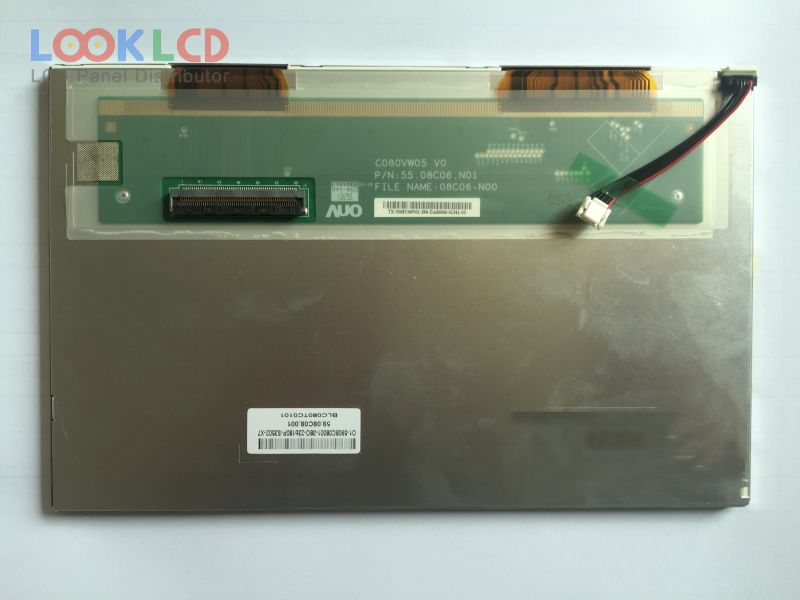

| panel model | C080VW05 V0 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 175.2×105.12 mm |
| outline | 186.5×117.22 mm |
| surface | Antiglare |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 15/20 (Typ.)(Tr/Td) |
| viewing angle | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4S4PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| input voltage | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | CNS |
