| Nama Wahi | TM080SV-04L01 |
| Waitohu | SANYO |
| Rahi | 8.0 |
| Taupānga | DPF |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 150 |
| CR | 250:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |

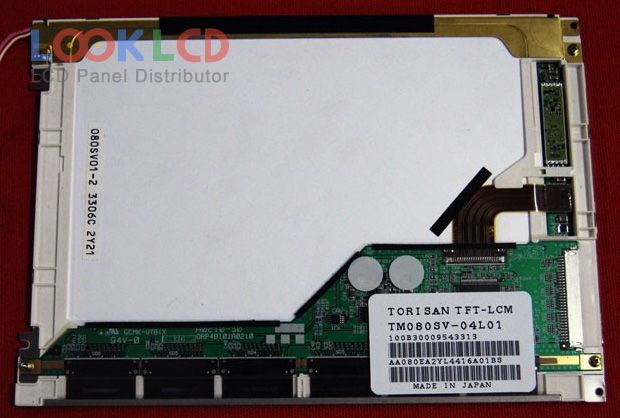

| panel brand | TORISAN |
| panel model | TM080SV-04L01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 163.2×122.4 mm |
| outline | 201.4×140.3 mm |
| surface | Antiglare |
| brightness | 150 cd/m² (Typ.) |
| contrast ratio | 250:1 (Typ.) |
| display colors | 262K (6-bit), CIE193152% |
| response time | 35/15 (Typ.)(Tr/Td) |
| viewing angle | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | DPF |
