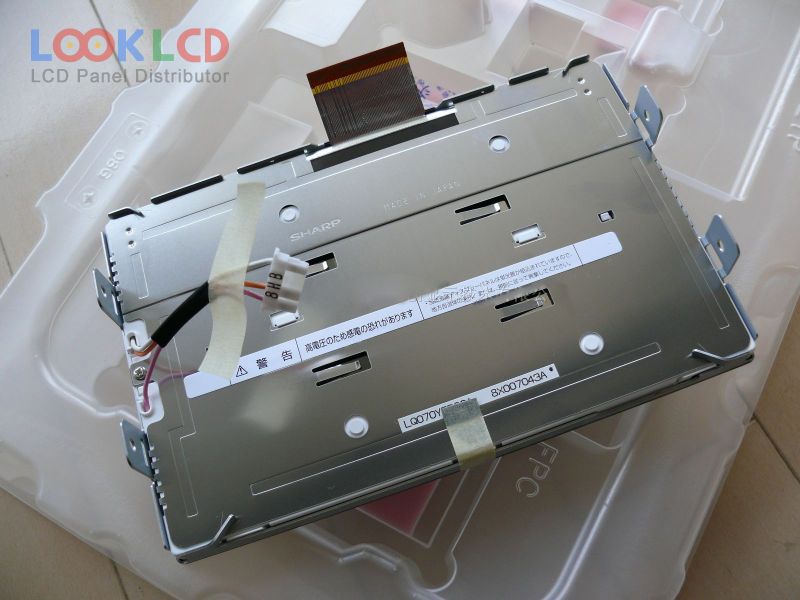

| Nama Wahi | LQ070Y5DG01 |
| Waitohu | SHARP |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 530 |
| CR | 250:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | SHARP |
| panel model | LQ070Y5DG01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 172.2×110.5×25 mm |
| surface | Antiglare, Antireflection |
| brightness | 530 cd/m² (Typ.) |
| contrast ratio | 250:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 10/20 (Typ.)(Tr/Td) |
| viewing angle | 60/60/35/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| input voltage | 5.3/3.3/13.0/-11.7/-13.7/-17.0V (Typ.)(VLS/VSH/VDD/VEE/VCC/VSS) |
| application | CNS |
