| Nama Wahi | LQ070T5DR02 |
| Waitohu | SHARP |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 480×240 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 100:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | SHARP |

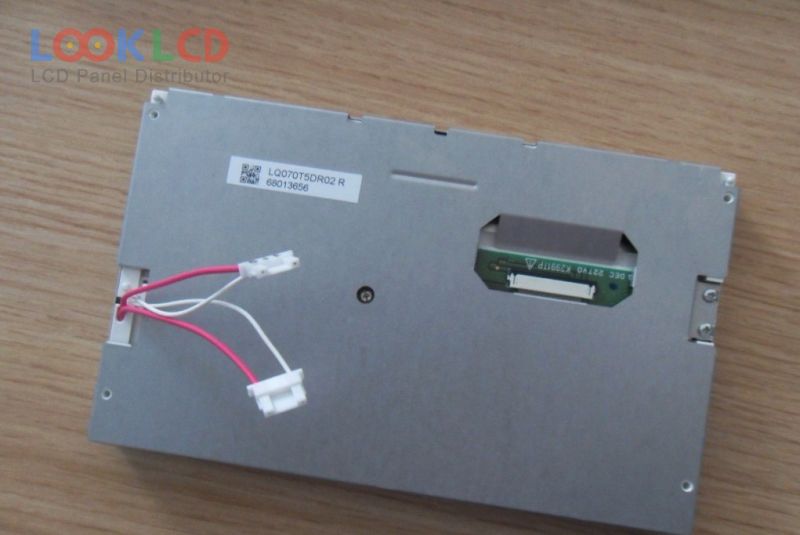

| panel model | LQ070T5DR02 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 480(RGB)×240 , WQVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 154.08×87 mm |
| outline | 170.1×103.4 mm |
| surface | Antiglare, Antireflection |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 100:1 (Min.) |
| display colors | 262K (6-bit) |
| response time | 30/50 (Typ.)(Tr/Td) |
| viewing angle | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 36 pins |
| input voltage | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| rohs: | |
| application | CNS |
