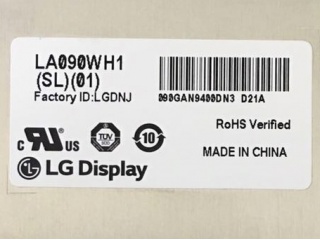

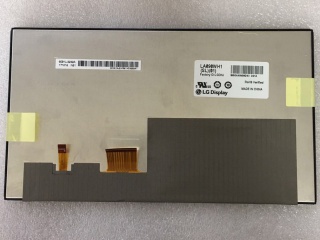

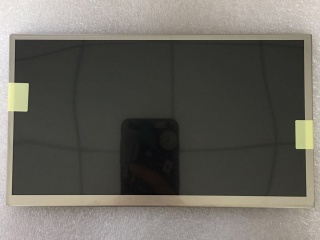

| Nama Wahi | LA090WH1-SL01 |
| Waitohu | LG Display |
| Rahi | 9.0 |
| Taupānga | Automotive Display |
| Whakatau | 1280×720 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| brand | LG Display |
| model | LA090WH1-SL01 |
| diagonal size | 9.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1280(RGB)×720 [WXGA] 164PPI |
| configuration | RGB Vertical Stripe |
| active area | 200.448(H)×106.056(V) mm |
| outline dim. | 213.2(H)×121.2(V) ×8.6(D) mm |
| bezel area | 203.148(H)×108.756(V) mm |
| treatment | Antiglare |
| luminance | 600 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| view direction | Symmetry |
| response time | 17/13 (Max.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Min.)(CR≥10) |
| operating mode | IPS, Normally Black, Transmissive |
| support color | 16.7M 65% NTSC |
| light source | WLED [6S3P] , 10K hours , W/O Driver |
| weight | 219/224g (Typ./Max.) |
| designed for | Automotive Display |
| frame rate | 60Hz |
| touch panel | Without |
| interface type | LVDS (1 ch, 8-bit) , 60 pins Connector |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 95 °C |
