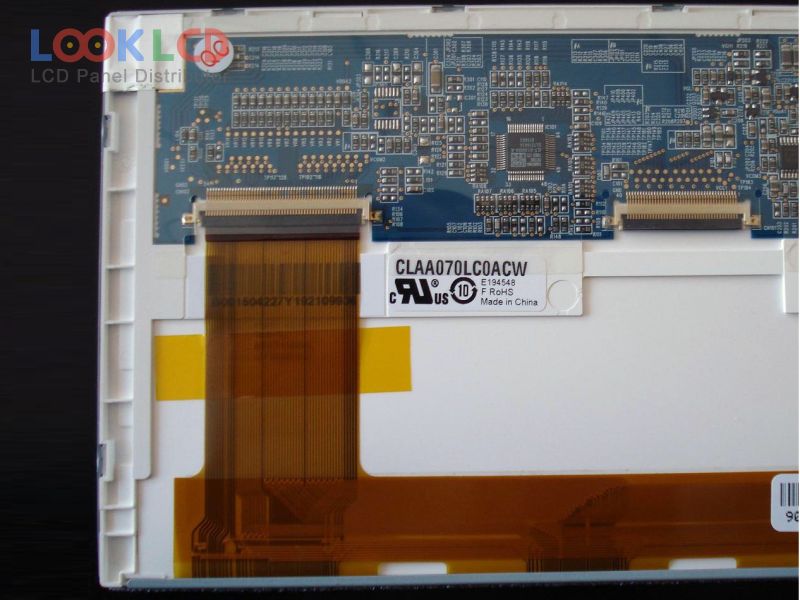

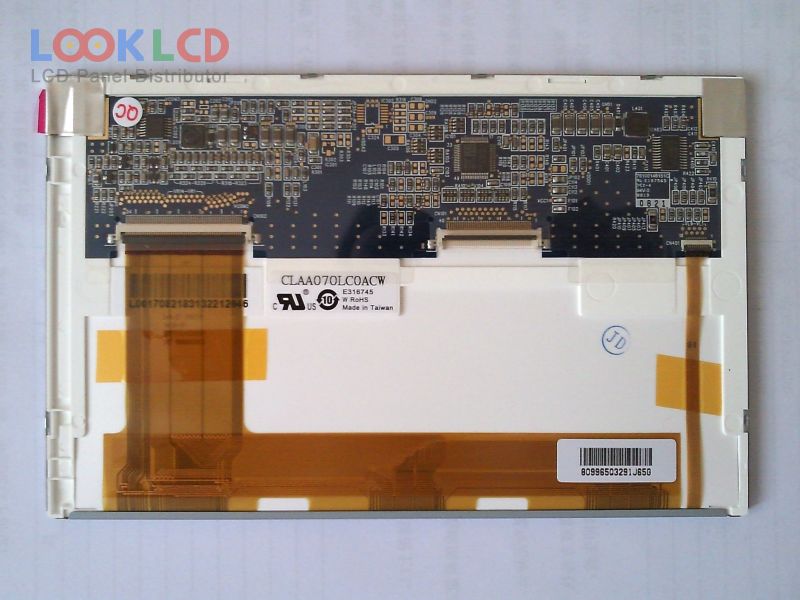

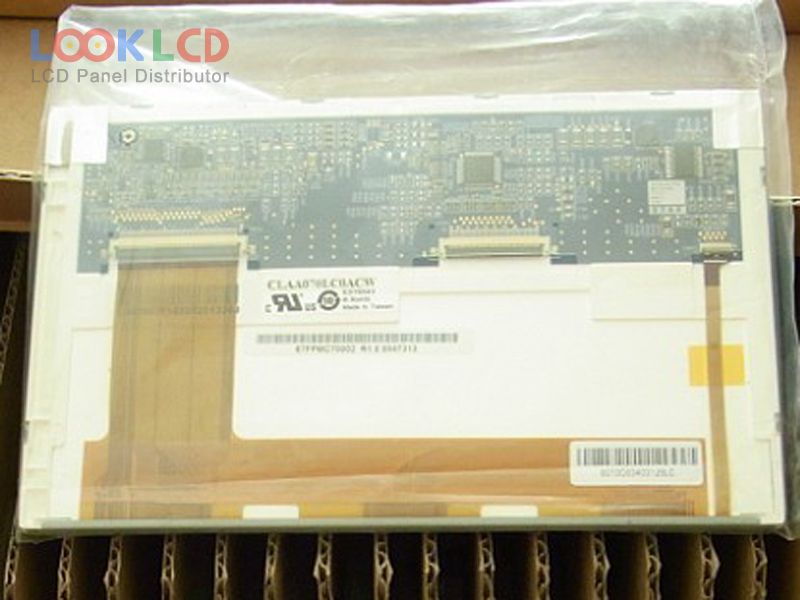

| Nama Wahi | CLAA070LC0ACW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | MP4 |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 220 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | CPT |
| panel model | CLAA070LC0ACW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×104×5.3 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.)(VCC) |
| rohs: | |
| application | MP4 |
