| Nama Wahi | CLAA070ND22CW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | MP4 |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 700:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CPT |

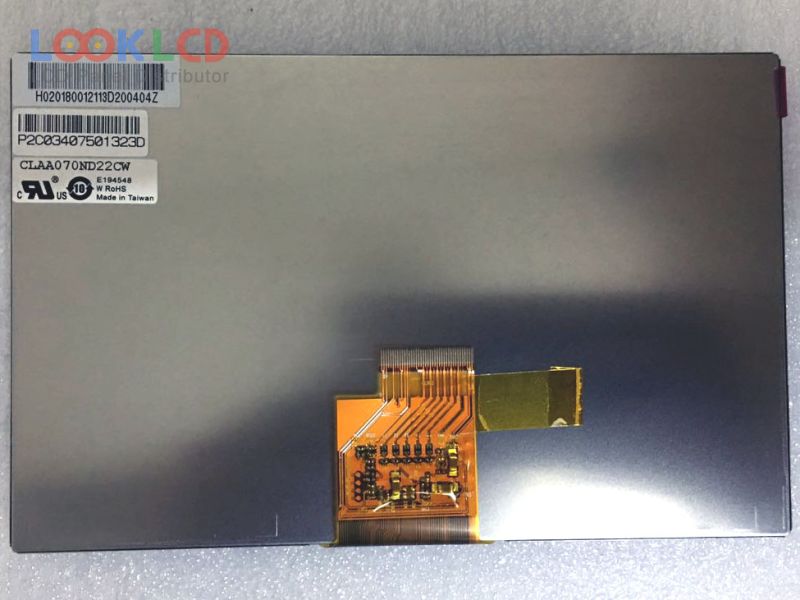

| panel model | CLAA070ND22CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 153.6×90 mm |
| outline | 165.75×105.39×3.5 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 80/80/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S8PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| input voltage | 3.3/9.6/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | MP4 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
