| Nama Wahi | CLAA070NJ01CW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 550 |
| CR | 800:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CPT |

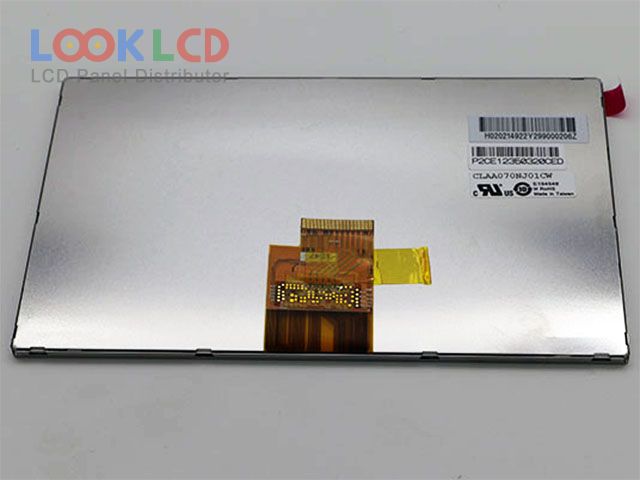

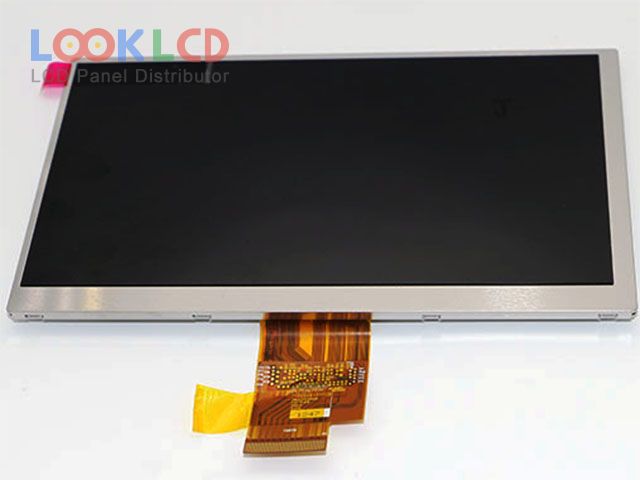

| panel model | CLAA070NJ01CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 154.214×85.92 mm |
| outline | 164.9×100×3.7 mm |
| surface | Antiglare |
| brightness | 550 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| input voltage | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| application | CNS |
