| Nama Wahi | AM-800480STMQW-00 |
| Waitohu | AMPIRE |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | AMPIRE |

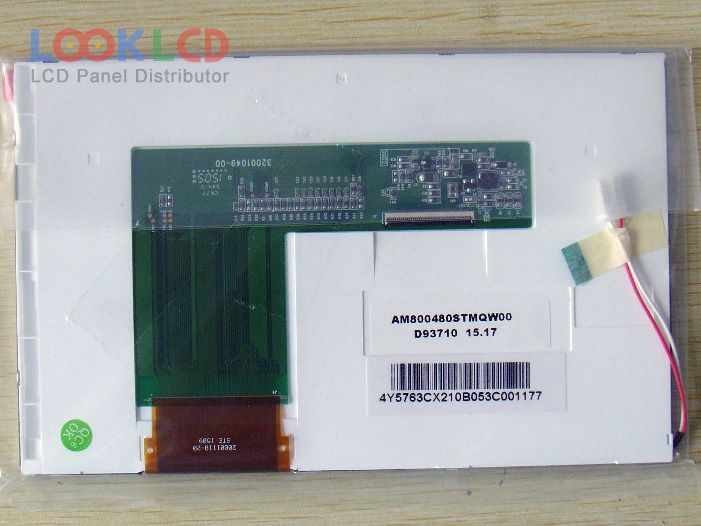

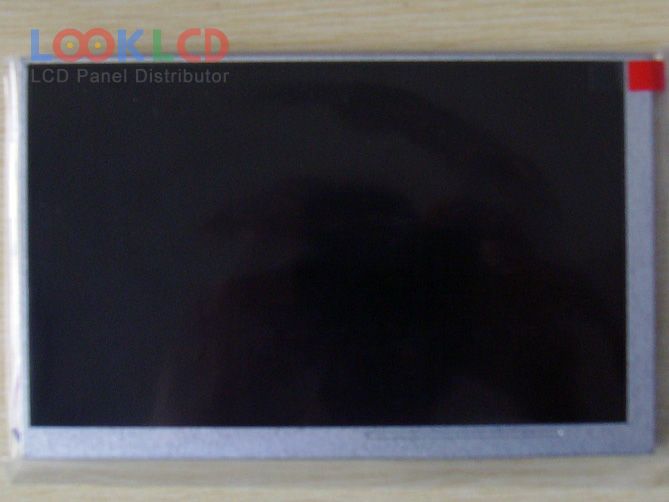

| panel model | AM-800480STMQW-00 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×104.44×5.7 mm |
| surface | |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 5/11 (Typ.)(Tr/Td) |
| viewing angle | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S8PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | CNS |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| DLC1010AZG-1 | Other | 10.1 | 1024×600 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| PM100WX2 | E Ink | 10.0 | 800×480 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
