| Nama Wahi | AM-800480RCTMQW-00H |
| Waitohu | AMPIRE |
| Rahi | 7.0 |
| Taupānga | IA |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 1000 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |

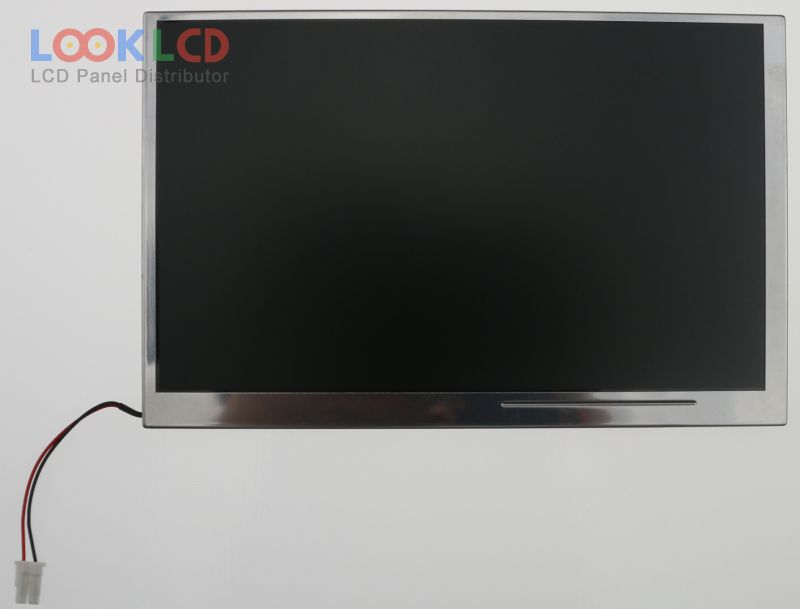

| panel brand | AMPIRE |
| panel model | AM-800480RCTMQW-00H |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×106×9.06 mm |
| surface | |
| brightness | 1000 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 5/11 (Typ.)(Tr/Td) |
| viewing angle | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 5S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
