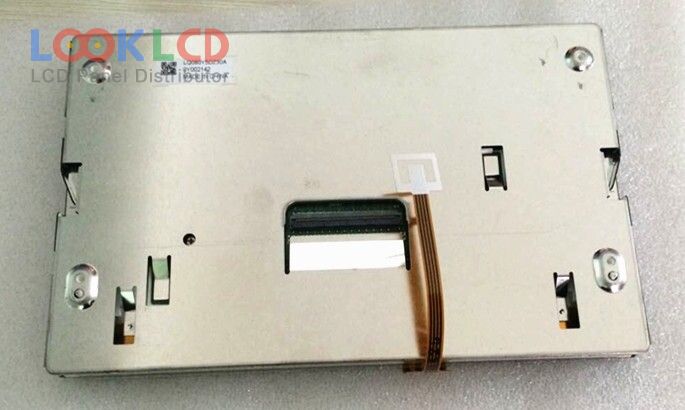

| Nama Wahi | LQ080Y5DZ03 |
| Waitohu | SHARP |
| Rahi | 8.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 640 |
| CR | 2000:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | SHARP |
| panel model | LQ080Y5DZ03 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | ASV, Normally Black, Transmissive |
| active area | 174×104.4 mm |
| outline | 191.8×120 mm |
| surface | Antiglare, Reflection 1.5% (Typ.) |
| brightness | 640 cd/m² (Typ.) |
| contrast ratio | 2000:1 (Typ.) |
| display colors | 262K (6-bit), CIE193164% |
| response time | 15/5 (Typ.)(Tr/Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | Parallel RGB (1 ch, 6-bit), 68 pins |
| input voltage | 3.3V (Typ.) |
| application | CNS |
