| Nama Wahi | CLAA069LB03CW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |

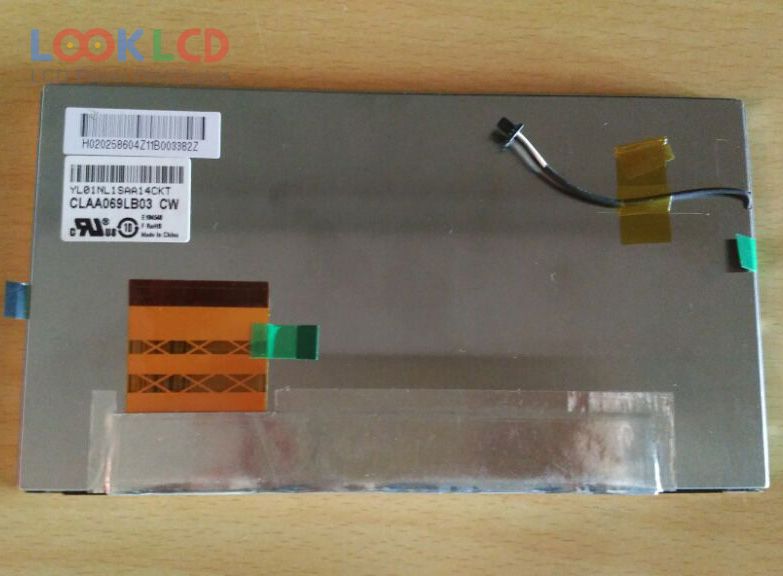

| panel brand | CPT |
| panel model | CLAA069LB03CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 156.6×81.6 mm |
| outline | 167×93×6.77 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit), CIE193176% |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6S4PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 60 pins |
| input voltage | 3.3/9.2/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | CNS |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| DLC1010GIG | Other | 10.1 | 1280×800 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LB040Q02-TD02 | LG Display | 4.0 | 320×240 |
| LQ042T5DZ01 | SHARP | 4.2 | 480×272 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
