AUO A027DN04 V4 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

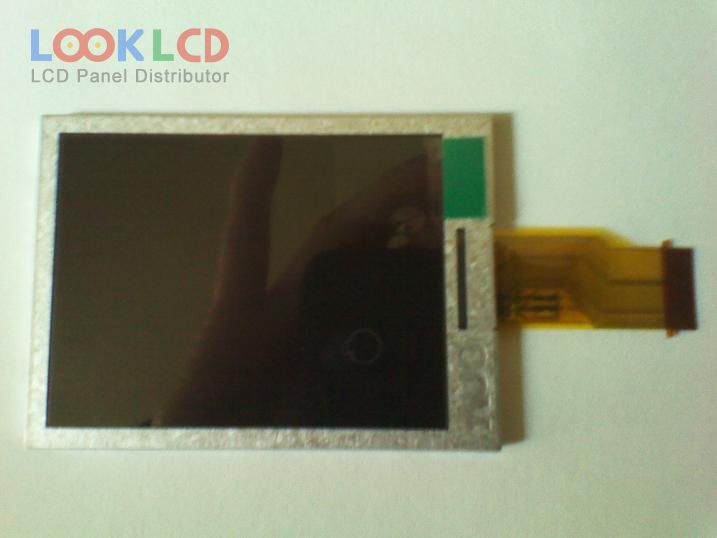

A027DN04 V4

A027DN04 V4
A027DN04 V4 thumb
Waitohu
AUO
Rahi
2.7
Taupānga
DSC
Whakatau
320×240
Te tito
LCM
Tirohanga
300
CR
400:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
Serial RGB
In Stock
1202
Whakatakotoranga

Nama Wahi A027DN04 V4
WaitohuAUO
Rahi2.7
TaupāngaDSC
Whakatau320×240
Te titoLCM
Tirohanga300
CR400:1
Nga Tae16.7M
WhakamuriWLED
AtangaSerial RGB
panel brandAUO
panel modelA027DN04 V4
panel type a-Si TFT-LCD , LCM
panel size2.7 inch
resolution320(RGB)×240 , QVGA
display modeTN, Normally White, Transmissive
active area54×40.5 mm
outline66.6×48.7×2.8 mm
surfaceHard coating (3H)
brightness300 cd/m² (Typ.)
contrast ratio400:1 (Typ.)
display colors16.7M (8-bit), CIE193145%
response time10/25 (Typ.)(Tr/Td)
viewing angle60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type2S1PWLEDWithout Driver
signal interfaceSerial RGB (8-bit) + SPI, CCIR601/656, 39 pins
input voltage3.3V (Typ.)
applicationDSC
