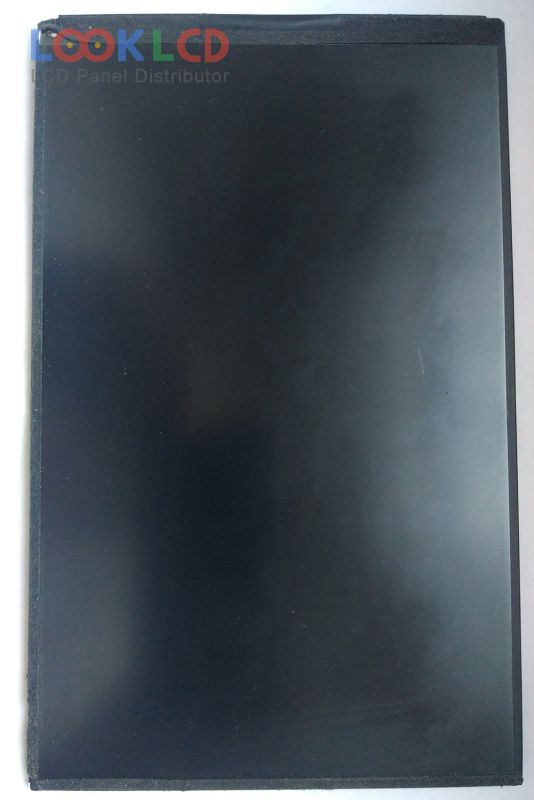

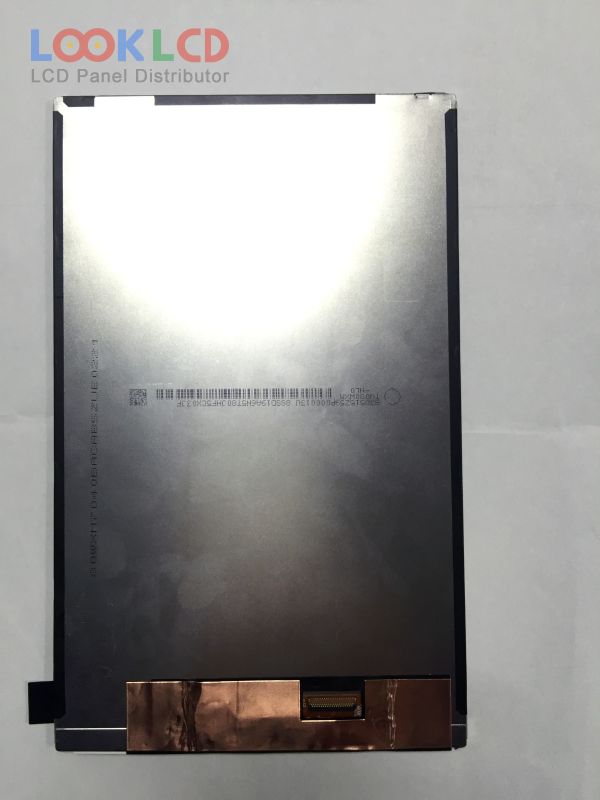

| Nama Wahi | TV080WXM-NL0 |
| Waitohu | BOE |
| Rahi | 8.0 |
| Taupānga | PAD |
| Whakatau | 800×1280 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| panel brand | BOE |
| panel model | TV080WXM-NL0 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×1280 , WXGA |
| display mode | ADS, Normally Black, Transmissive |
| active area | 107.64×172.224 mm |
| outline | 114.8×184.7×2.7 mm |
| surface | Antiglare (Haze 25%) |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193160% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 7S3PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 39 pins |
| input voltage | 1.8/3.3V (Typ.)(VCI/VDDI) |
| application | PAD |
