| Nama Wahi | DLC0800AIG-2 |
| Waitohu | Other |
| Rahi | 8.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 1000 |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | DLC |

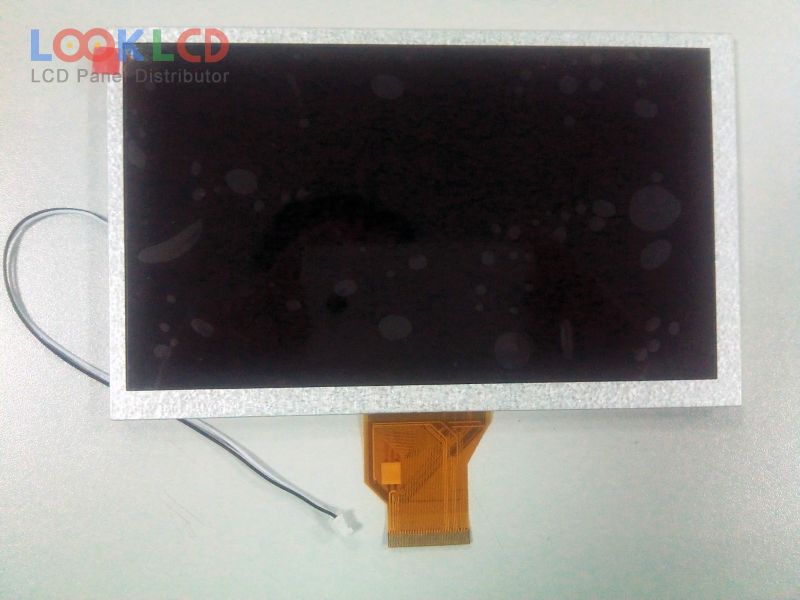

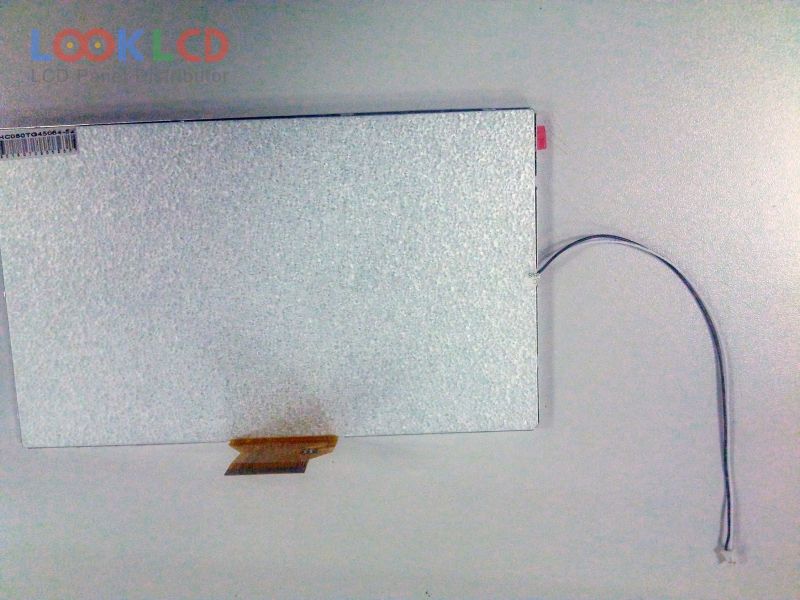

| panel model | DLC0800AIG-2 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 176.64×99.36 mm |
| outline | 192.8×116.9×6.7 mm |
| surface | |
| brightness | 1000 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 10/15 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 65Hz |
| lamp type | WLEDWithout Driver |

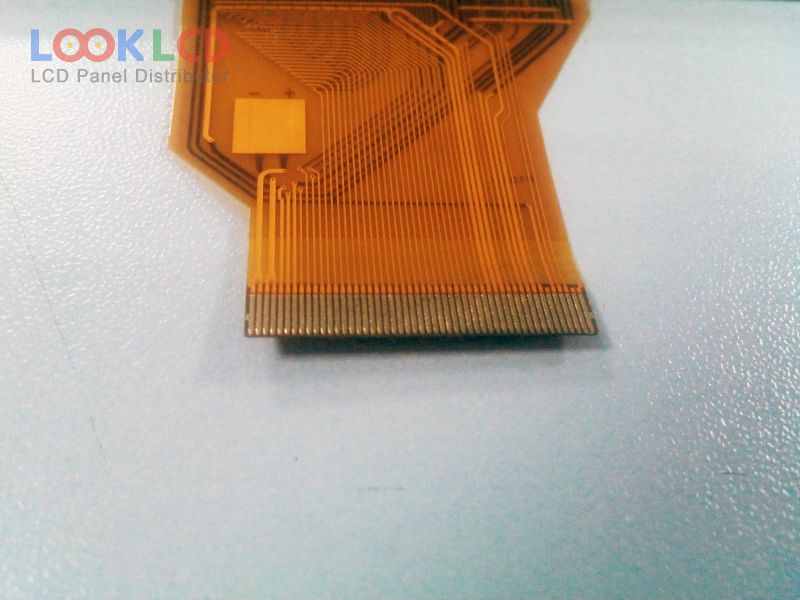

| signal interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| input voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | CNS |
