Innolux Q07021-701 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com

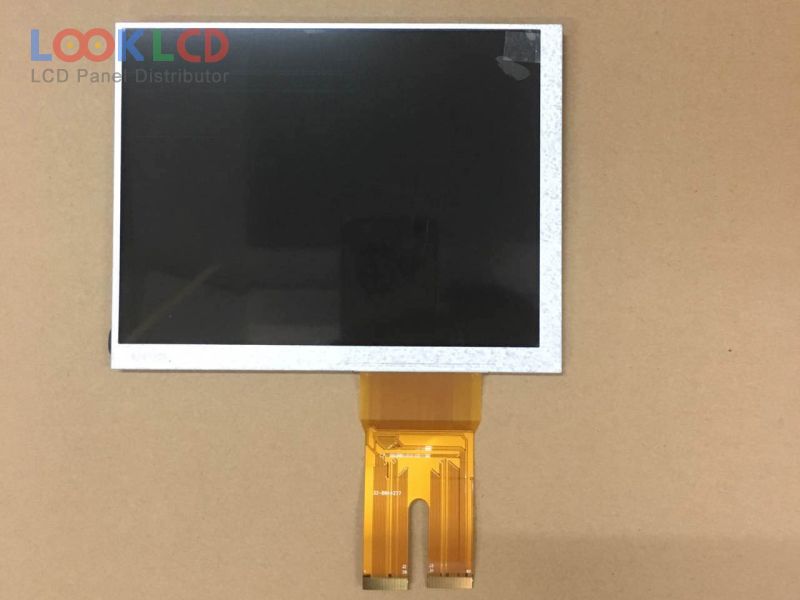

Q07021-701


Waitohu
Innolux
Rahi
7.0
Taupānga
DPF
Whakatau
800×600
Te tito
LCM
Tirohanga
250
CR
400:1
Nga Tae
262K
Whakamuri
WLED
Atanga
TTL
In Stock
11895
Whakatakotoranga

Nama Wahi Q07021-701
WaitohuInnolux
Rahi7.0
TaupāngaDPF
Whakatau800×600
Te titoLCM
Tirohanga250
CR400:1
Nga Tae262K
WhakamuriWLED
AtangaTTL
panel brandCHIMEI INNOLUX
panel modelQ07021-701
panel type a-Si TFT-LCD , LCM
panel size7.0 inch
resolution800(RGB)×600 , SVGA
display modeTN, Normally White, Transmissive
active area141.6×106.2 mm
outline154×119.2×5.25 mm
surfaceAntiglare
brightness250 cd/m² (Typ.)
contrast ratio400:1 (Typ.)
display colors262K (6-bit), CIE193145%
response time5/15 (Typ.)(Tr/Td)
viewing angle70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type3S6PWLEDWithout Driver
signal interfaceParallel RGB (1 ch, 6-bit), 60 pins
input voltage3.3/12.0V (Typ.)(VCC/VDD)
applicationDPF
