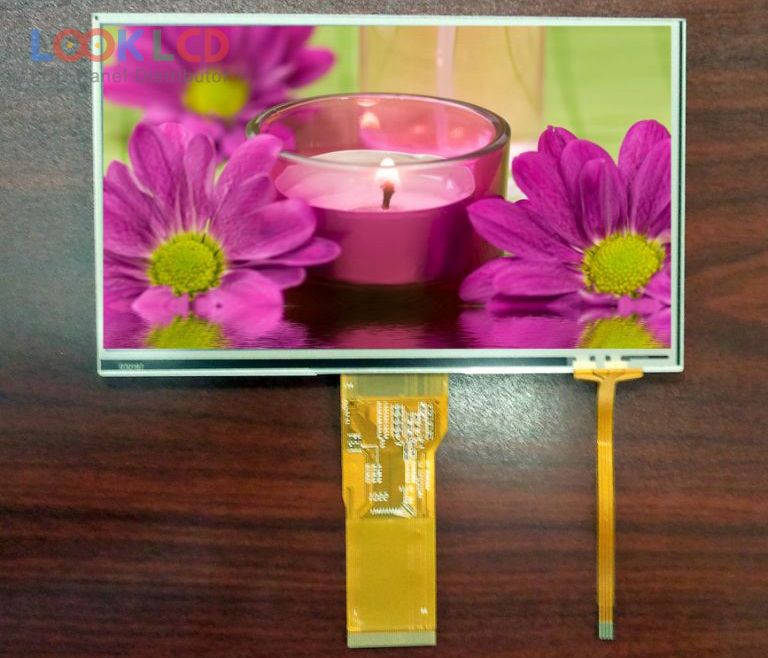

| Nama Wahi | TM070RBH10 |
| Waitohu | Tianma |
| Rahi | 7.0 |
| Taupānga | MP4 |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 280 |
| CR | 500:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | TIANMA |
| panel model | TM070RBH10 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 154.08×85.92 mm |
| outline | 164.9×100×7.1 mm |
| surface | Antiglare |
| brightness | 280 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193149% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S8PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| input voltage | 3.3/10.6/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | MP4 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LMS430HF12-003 | Samsung | 4.3 | 480×272 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
