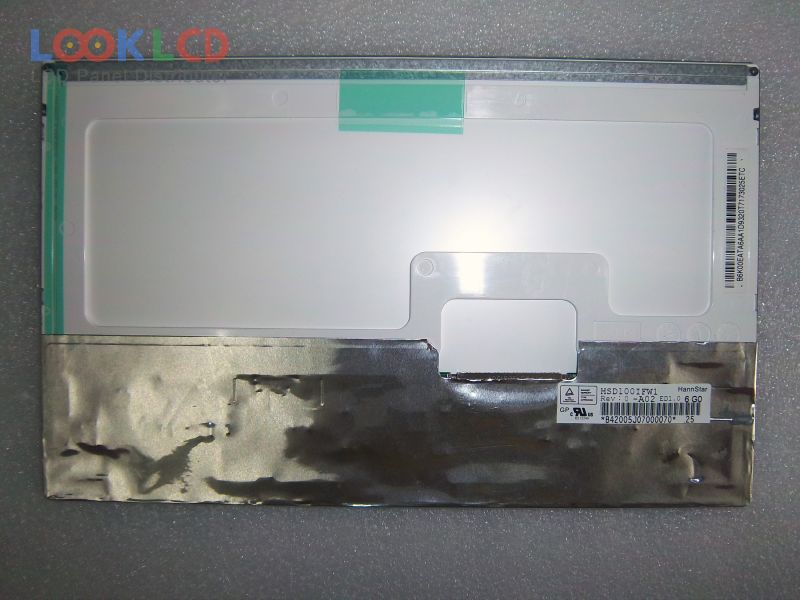

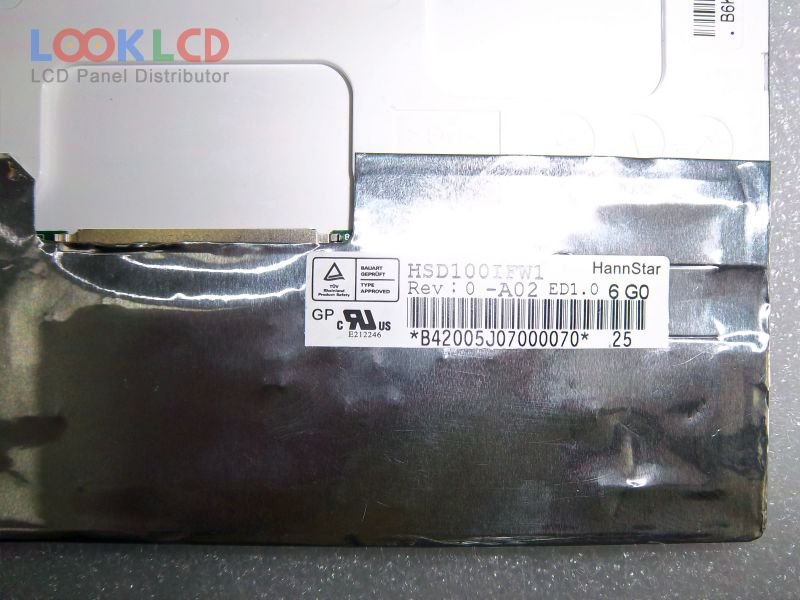

| Nama Wahi | HSD100IFW1-A02 |
| Waitohu | HannStar |
| Rahi | 10.1 |
| Taupānga | DPF |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HannStar |
| panel model | HSD100IFW1-A02 5 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 220.416×129.15 mm |
| outline | 235×145.8×5.8 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193147% |
| response time | 5/20 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | DPF |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| A080SN01 V5 | AUO | 8.0 | 800×600 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
