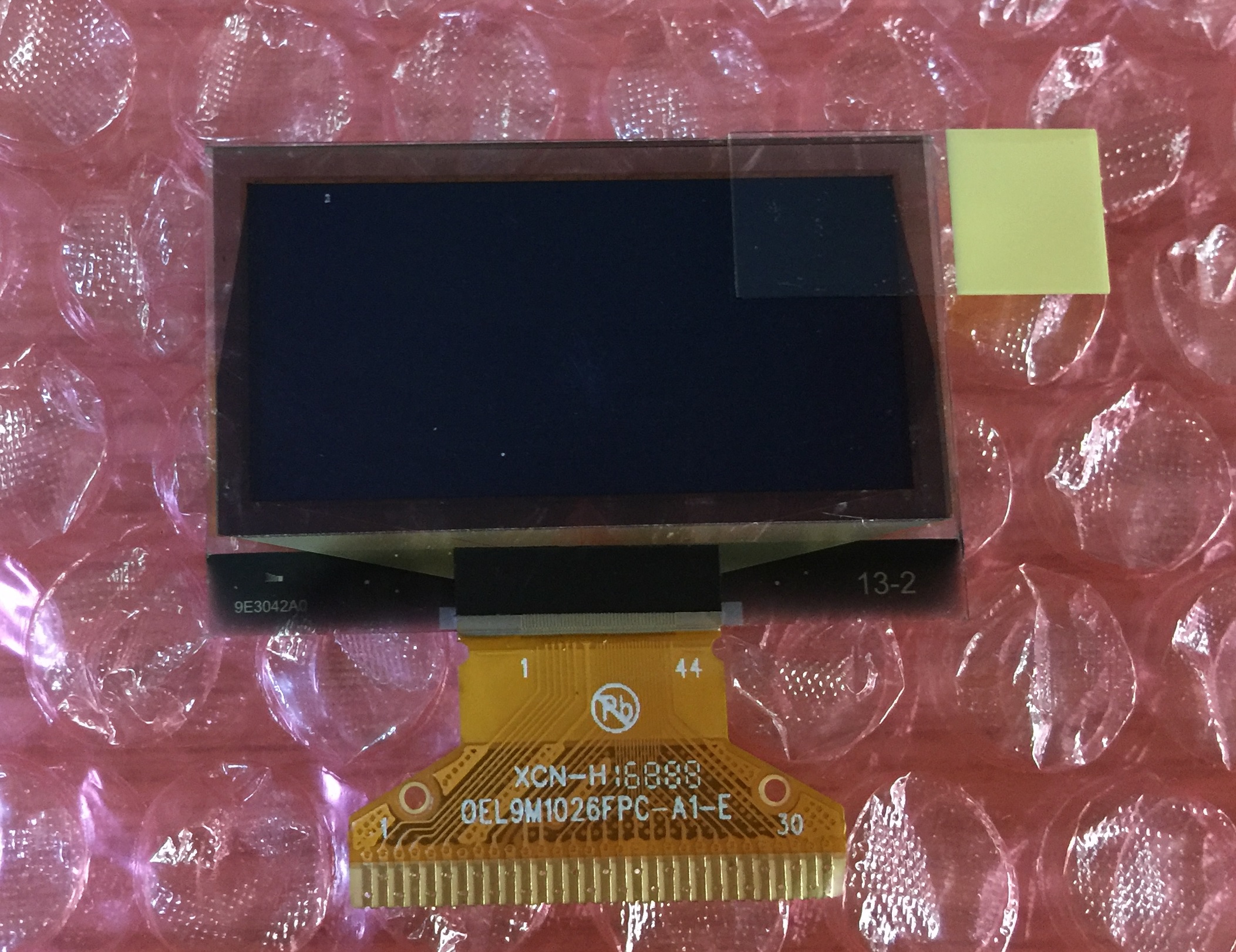

OEL9M1026-W-E

OEL9M1026-W-E
OEL9M1026-W-E thumb
Waitohu
TRULY
Rahi
1.3
Taupānga
Wearable MP3 PMP
Whakatau
128×64
Te tito
PM-OLED, OLED
Tirohanga
CR
10000:1
Nga Tae
Mono(White)
Whakamuri
self
Atanga
8-bit
In Stock
14226
Whakatakotoranga

Nama Wahi OEL9M1026-W-E
WaitohuTRULY
Rahi1.3
TaupāngaWearable MP3 PMP
Whakatau128×64
Te titoPM-OLED, OLED
Tirohanga
CR10000:1
Nga TaeMono(White)
Whakamuriself
Atanga8-bit
brandTRULY
modelOEL9M1026-W-E
diagonal size1.3 inch
typePM-OLED, OLED
pixel format128×64  110PPI
configurationRectangle
active area29.42(H)×14.7(V) mm
outline dim.34.5(H)×23(V) ×1.55(D) mm
bezel area31.42(H)×16.7(V) mm
treatment-
luminance116 cd/m² (Typ.)
contrast ratio10000:1 (Min.) (TM)
view directionSymmetry
response time0.02/0.02 (Max.)(Tr/Td)
viewing angle80/80/80/80 (Min.)
operating mode-
support colorMono(White)
light sourceself , 20K hours
weight3.00g (Typ.)
designed forWearable MP3 PMP
frame rate100Hz
touch panelWithout
d-ic detailCOG Built-in SH1106G
interface type8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC
power supply1.65/3.5V (Typ./Max.)(VDD1)
environmentOperating Temperature: -40 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
