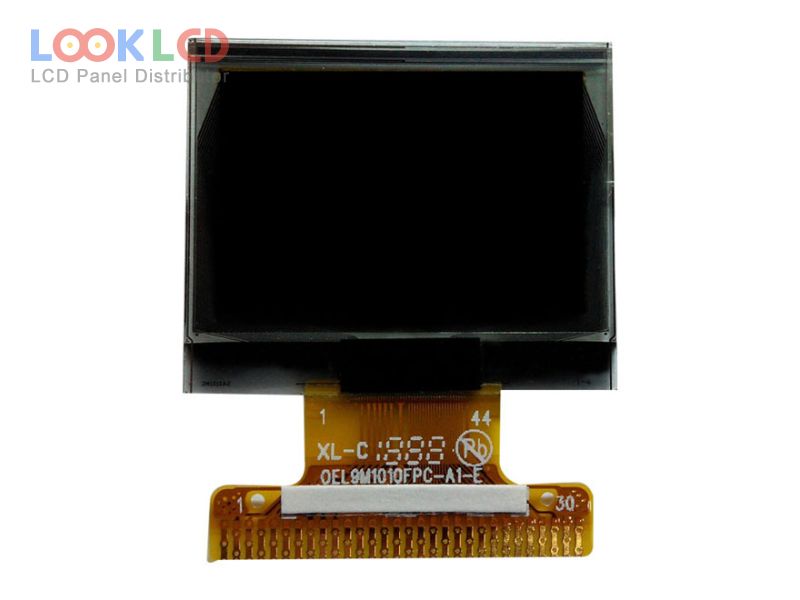

OEL9M1010-W-E

OEL9M1010-W-E
OEL9M1010-W-E thumb
Waitohu
Other
Rahi
0.95
Taupānga
SW
Whakatau
96×64
Te tito
OLED
Tirohanga
75
CR
10000:1
Nga Tae
Mono(White)
Whakamuri
self
Atanga
CPU/SPI/I²C
In Stock
15359
Whakatakotoranga

Nama Wahi OEL9M1010-W-E
WaitohuOther
Rahi0.95
TaupāngaSW
Whakatau96×64
Te titoOLED
Tirohanga75
CR10000:1
Nga TaeMono(White)
Whakamuriself
AtangaCPU/SPI/I²C
panel brandTRULY
panel modelOEL9M1010-W-E
panel type PM-OLED , OLED
panel size0.95 inch
resolution96×64
active area19.95×13.42 mm
outline24.9×20.53×1.55 mm
surface
brightness75 cd/m² (Typ.)
contrast ratio10000 : 1 (Min.)
display colorsMono(White) (1-bit)
viewing angle80/80/80/80 (Min.)(L/R/U/D)
frequency100Hz
driver icCOG Built-in SH1106G
signal interface8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
input voltage3.3/3.3V (Typ.)(VDD1/VDD2)
applicationSW
