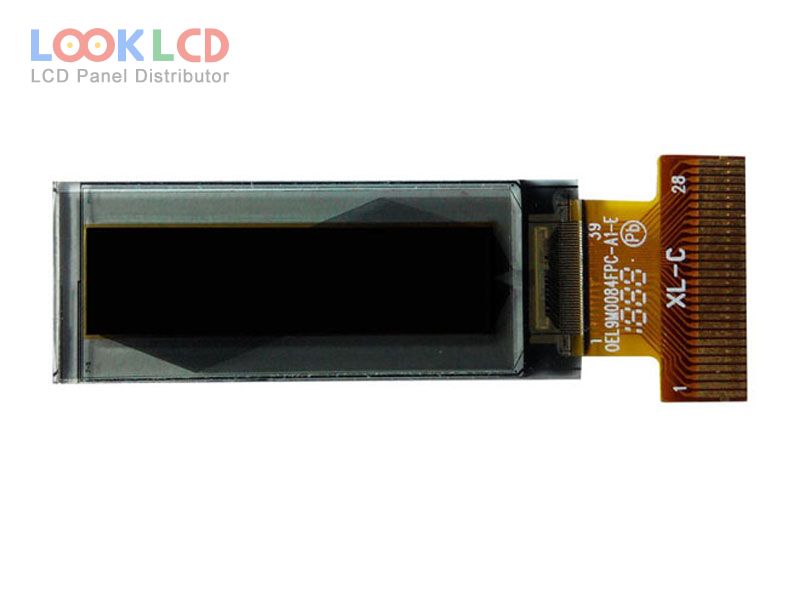

OEL9M0084-R-E

OEL9M0084-R-E
OEL9M0084-R-E thumb
Waitohu
Other
Rahi
0.91
Taupānga
SW
Whakatau
128×32
Te tito
OLED
Tirohanga
CR
10000:1
Nga Tae
Mono(Red)
Whakamuri
self
Atanga
CPU/SPI/I²C
In Stock
12913
Whakatakotoranga

Nama Wahi OEL9M0084-R-E
WaitohuOther
Rahi0.91
TaupāngaSW
Whakatau128×32
Te titoOLED
Tirohanga
CR10000:1
Nga TaeMono(Red)
Whakamuriself
AtangaCPU/SPI/I²C
panel brandTRULY
panel modelOEL9M0084-R-E
panel type PM-OLED , OLED
panel size0.91 inch
resolution128×32
active area22.38×5.58 mm
outline30×11.5×1.55 mm
surface
brightness
contrast ratio10000 : 1 (Min.)
display colorsMono(Red) (1-bit)
viewing angle80/80/80/80 (Min.)(L/R/U/D)
frequency100Hz
driver icCOG Built-in SH1103G
signal interface8-bit 6800/8080 parallel, SPI, I²C, 28 pins
input voltage3.0/3.7/10.0V (Typ.)(VDD1/VDD2/VPP)
rohs:
applicationSW
