Other OEL9M1010-Y-E Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

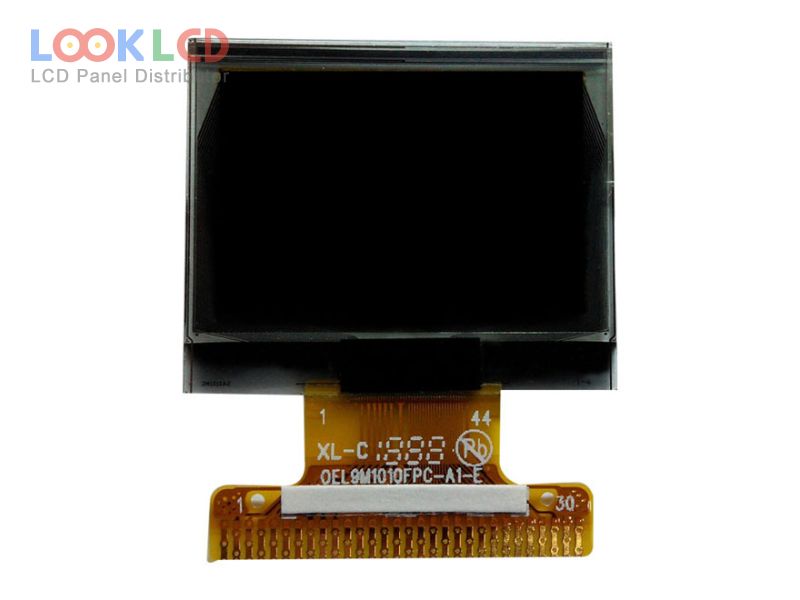

OEL9M1010-Y-E

OEL9M1010-Y-E
OEL9M1010-Y-E thumb
Waitohu
Other
Rahi
0.95
Taupānga
SW
Whakatau
96×64
Te tito
OLED
Tirohanga
CR
10000:1
Nga Tae
Mono(Yellow)
Whakamuri
self
Atanga
CPU/SPI/I²C
In Stock
3607
Whakatakotoranga

Nama Wahi OEL9M1010-Y-E
WaitohuOther
Rahi0.95
TaupāngaSW
Whakatau96×64
Te titoOLED
Tirohanga
CR10000:1
Nga TaeMono(Yellow)
Whakamuriself
AtangaCPU/SPI/I²C
panel brandTRULY
panel modelOEL9M1010-Y-E
panel type PM-OLED , OLED
panel size0.95 inch
resolution96×64
active area19.95×13.42 mm
outline24.9×20.53×1.55 mm
surface
brightness
contrast ratio10000 : 1 (Min.)
display colorsMono(Yellow) (1-bit)
viewing angle80/80/80/80 (Min.)(L/R/U/D)
frequency100Hz
driver icCOG Built-in SH1106G
signal interface8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
input voltage3.3/3.3V (Typ.)(VDD1/VDD2)
applicationSW
Tauira Whanau
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-G-E Other 1.1 96×96
OEL9M1007-R-E Other 1.1 96×96
OEL9M1007-W-E Other 1.1 96×96
OEL9M1007-Y-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-G-E Other 0.95 96×64
OEL9M1010-R-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
