Other OEL9M1004-L4-E Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

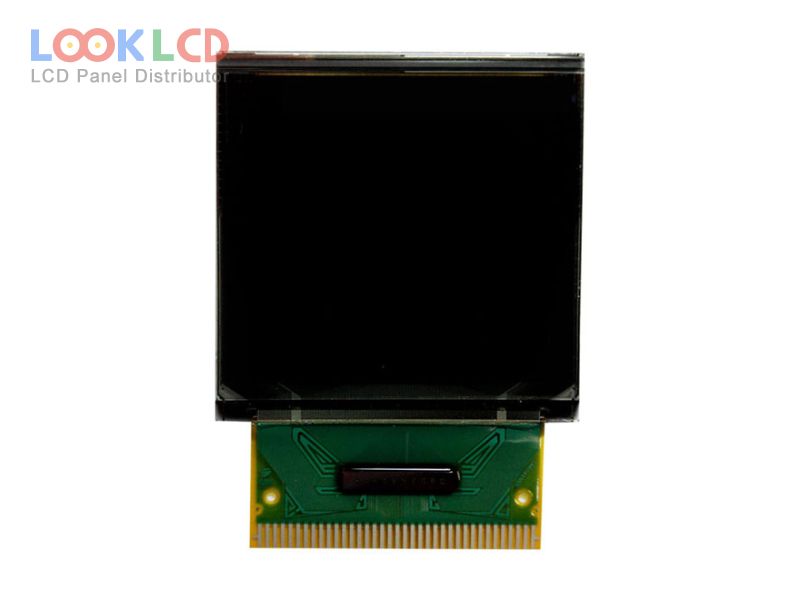

OEL9M1004-L4-E

OEL9M1004-L4-E
OEL9M1004-L4-E thumb
Waitohu
Other
Rahi
1.5
Taupānga
SW
Whakatau
128×128
Te tito
OLED
Tirohanga
80
CR
5000:1
Nga Tae
262K
Whakamuri
self
Atanga
CPU/SPI
In Stock
2176
Whakatakotoranga

Nama Wahi OEL9M1004-L4-E
WaitohuOther
Rahi1.5
TaupāngaSW
Whakatau128×128
Te titoOLED
Tirohanga80
CR5000:1
Nga Tae262K
Whakamuriself
AtangaCPU/SPI
panel brandTRULY
panel modelOEL9M1004-L4-E
panel type PM-OLED , OLED
panel size1.5 inch
resolution128(RGB)×128
active area27.23×27.23 mm
outline35.5×34.6×1.55 mm
surface
brightness80 cd/m² (Typ.)
contrast ratio5000 : 1 (Min.)
display colors262K (6-bit), CIE193160%
viewing angle85/85/85/85 (Min.)(L/R/U/D)
frequency100Hz
driver icCOF Built-in SSD1355U8R1
signal interface8/16/18-bit 6800/8080 parallel, 3/4-wire SPI, 37 pins
applicationSW
