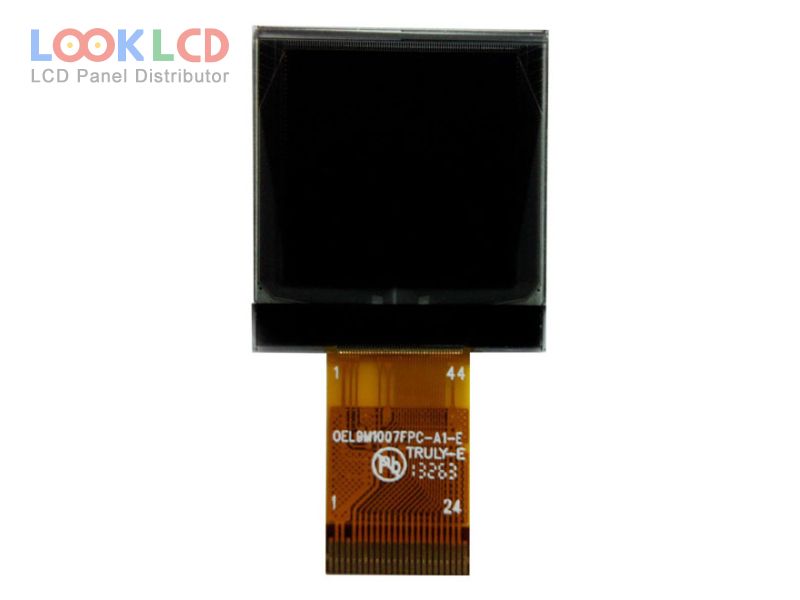

OEL9M1007-W-E

OEL9M1007-W-E
OEL9M1007-W-E thumb
Waitohu
Other
Rahi
1.1
Taupānga
SW
Whakatau
96×96
Te tito
OLED
Tirohanga
100
CR
10000:1
Nga Tae
Mono(White)
Whakamuri
self
Atanga
CPU/SPI/I²C
In Stock
14153
Whakatakotoranga

Nama Wahi OEL9M1007-W-E
WaitohuOther
Rahi1.1
TaupāngaSW
Whakatau96×96
Te titoOLED
Tirohanga100
CR10000:1
Nga TaeMono(White)
Whakamuriself
AtangaCPU/SPI/I²C
panel brandTRULY
panel modelOEL9M1007-W-E
panel type PM-OLED , OLED
panel size1.1 inch
resolution96×96
active area19.655×19.655 mm
outline25.49×29.1×1.55 mm
surface
brightness100 cd/m² (Typ.)
contrast ratio10000 : 1 (Min.)
display colorsMono(White) (1-bit)
viewing angle80/80/80/80 (Min.)(L/R/U/D)
frequency100Hz
driver icCOG Built-in SH1107G
signal interface8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins
applicationSW
