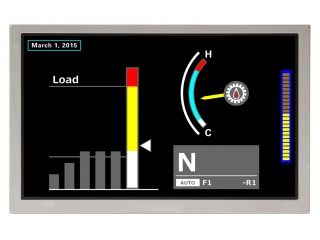

| Nama Wahi | NL8048BC21-03F |
| Waitohu | NLT |
| Rahi | 8.0 |
| Taupānga | Industrial Outdoor H |
| Whakatau | 800×480 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| brand | NLT |
| diagonal size | 8.0 inch |
| pixel format | 800(RGB)×480 [WVGA] 116PPI |
| active area | 174(H)×104.4(V) mm |
| bezel area | - |
| luminance | 1000 cd/m² (Typ.) |
| view direction | Symmetry |
| viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| support color | 262K/16.7M 72% NTSC |
| weight | 225g |
| frame rate | 60Hz |
| interface type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| model | NL8048BC21-03F |
| type | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| outline dim. | 192(H)×122(V) mm |
| treatment | Antiglare |
| contrast ratio | 1000:1 (Typ.) (TM) |
| response time | 20 (Typ.)(Tr+Td) |
| operating mode | SFT, Normally Black, Transmissive |
| light source | WLED |
| designed for | Industrial Outdoor High Brightness |
| touch panel | Without |
