LG Display LP101WH4-SLAB Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

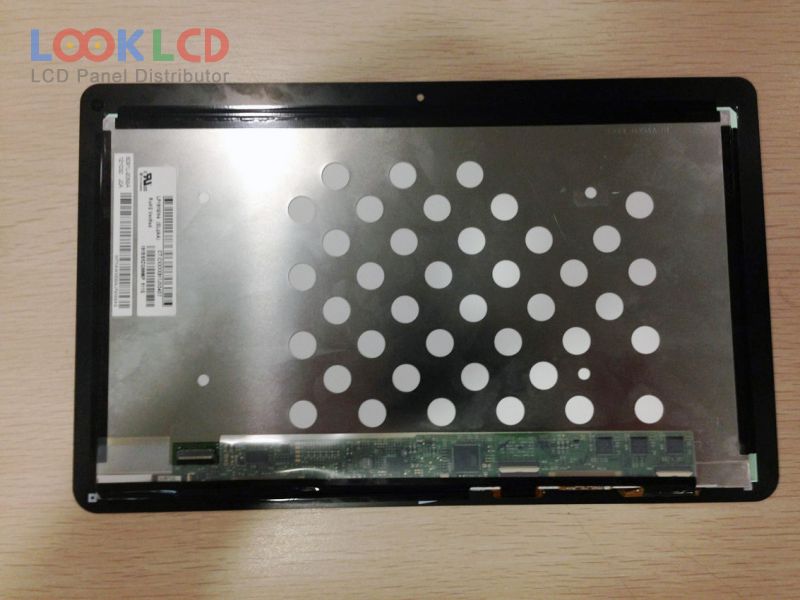

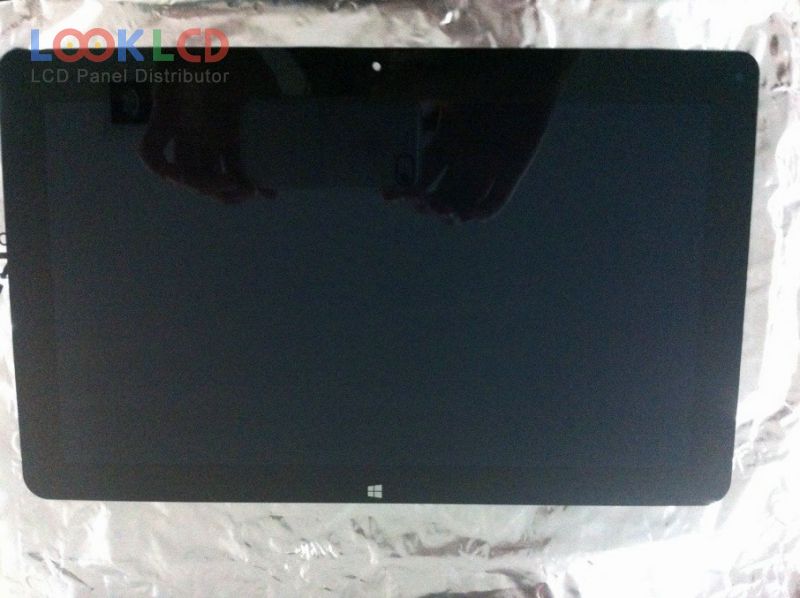

LP101WH4-SLAB

LP101WH4-SLAB
LP101WH4-SLAB
LP101WH4-SLAB thumb LP101WH4-SLAB thumb
Waitohu
LG Display
Rahi
10.1
Taupānga
PAD
Whakatau
1366×768
Te tito
Assembly
Tirohanga
315
CR
800:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
LVDS
In Stock
9
Whakatakotoranga

Nama Wahi LP101WH4-SLAB
WaitohuLG Display
Rahi10.1
TaupāngaPAD
Whakatau1366×768
Te titoAssembly
Tirohanga315
CR800:1
Nga Tae16.7M
WhakamuriWLED
AtangaLVDS
panel brandLG Display
panel modelLP101WH4-SLAB
panel type a-Si TFT-LCD , Assembly
panel size10.1 inch
resolution1366(RGB)×768 , WXGA
active area222.52×125.11 mm
outline254.3×158×5.45 mm
surfaceAnti Fingerprint, Hard coating (8H)
brightness315 cd/m² (Typ.)
contrast ratio800:1 (Typ.)
display colors16.7M (8-bit)
viewing angle85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
signal interfaceLVDS (1 ch, 8-bit), 39 pins
input voltage3.3V (Typ.)
applicationPAD
