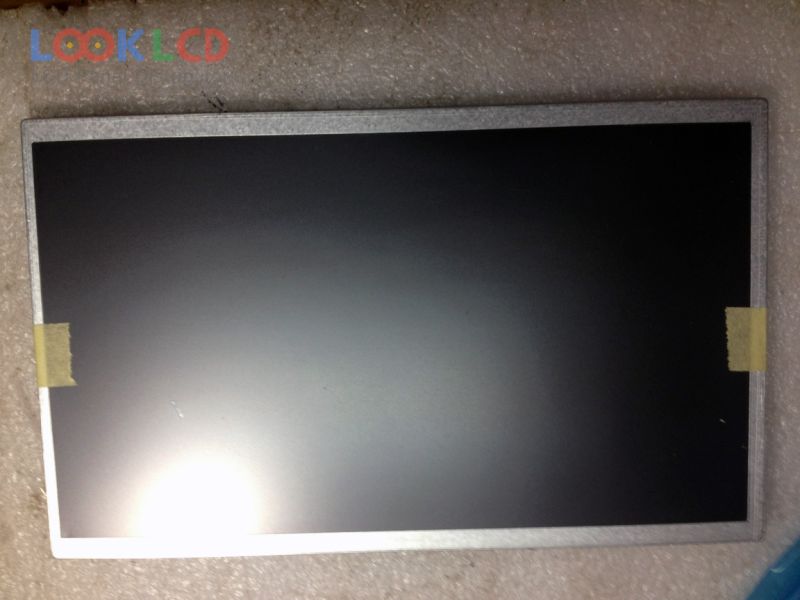

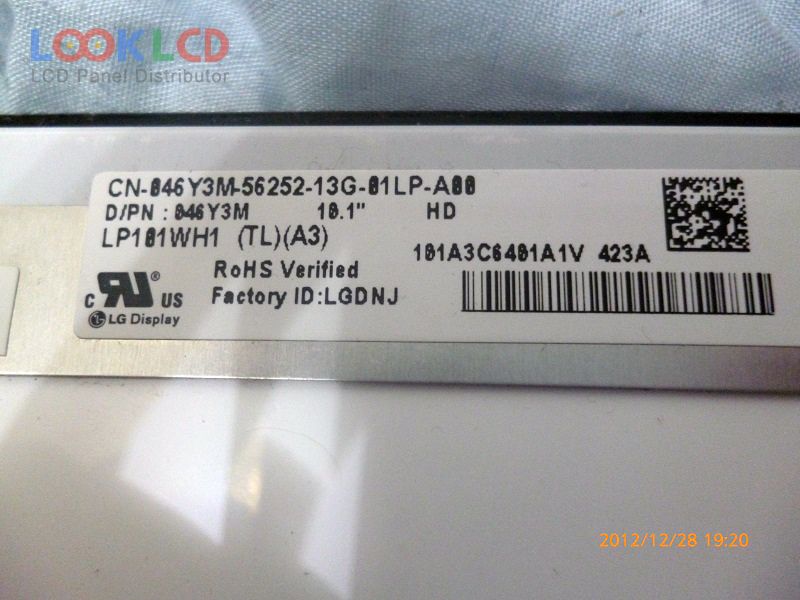

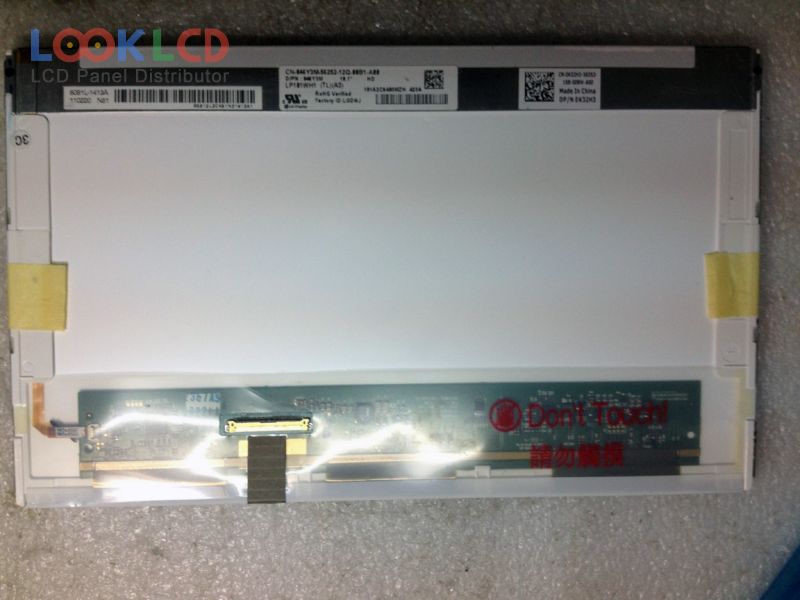

LP101WH1-TLA3

LP101WH1-TLA3
LP101WH1-TLA3
LP101WH1-TLA3
LP101WH1-TLA3 thumb LP101WH1-TLA3 thumb LP101WH1-TLA3 thumb
Waitohu
LG Display
Rahi
10.1
Taupānga
NBPC
Whakatau
1366×768
Te tito
LCM
Tirohanga
250
CR
500:1
Nga Tae
262K
Whakamuri
WLED
Atanga
LVDS
In Stock
19239
Whakatakotoranga

Nama Wahi LP101WH1-TLA3
WaitohuLG Display
Rahi10.1
TaupāngaNBPC
Whakatau1366×768
Te titoLCM
Tirohanga250
CR500:1
Nga Tae262K
WhakamuriWLED
AtangaLVDS
panel brandLG Display
panel modelLP101WH1-TLA3 3 Compatible model
panel type a-Si TFT-LCD , LCM
panel size10.1 inch
resolution1366(RGB)×768 , WXGA
display modeTN, Normally White, Transmissive
active area222.73×125.22 mm
outline235×143×5.2 mm
shape styleWedge (PCBA Bent, Depth ≥5.2mm)
surfaceGlare (Haze 0%)
brightness250 cd/m² (Typ.)
contrast ratio500:1 (Min.)
display colors262K (6-bit)
response time16 (Typ.)(Tr+Td)
viewing angle30/30/10/20 (Min.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)
signal interfaceLVDS (1 ch, 6-bit), 40 pins
input voltage3.3V (Typ.)
applicationNBPC
Tauira Whanau
LP101WH1-TLA1 LG Display 10.1 1366×768
LP101WH1-TLA2 LG Display 10.1 1366×768
LP101WH1-TLB1 LG Display 10.1 1366×768
LP101WH1-TLB5 LG Display 10.1 1366×768
LP101WH2-TLA2 LG Display 10.1 1366×768
LP101WH4-SLA3 LG Display 10.1 1366×768
LP101WH4-SLA6 LG Display 10.1 1366×768
LP101WH4-SLAF LG Display 10.1 1366×768
LP101WH4-SLP2 LG Display 10.1 1366×768
LP101WS1-TLA1 LG Display 10.1 1024×576
Hua wera
LP140WH4-TLP1 LG Display 14.0 1366×768
LP141WX3-TLN1 LG Display 14.1 1280×800
LP154WE2-TLA3 LG Display 15.4 1680×1050
LP156WH1-TLA3 LG Display 15.6 1366×768
LP156WH2-TLC1 LG Display 15.6 1366×768
LTN156AT01-U01 Samsung 15.6 1366×768
LTN156AT36-D01 Samsung 15.6 1366×768
M101NWN8 R0 IVO 10.1 1366×768
N133HSE-EB1 Innolux 13.3 1920×1080
TM121XG-02L10 SANYO 12.1 1024×768
