| Nama Wahi | N101ICG-L21 Rev.C2 |
| Waitohu | Innolux |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 800:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CMO |
| panel model | N101ICG-L21 Rev.C2 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | AAS, Normally Black, Transmissive |
| active area | 216.96×135.6 mm |
| outline | 227.42×147.69×4.85 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 262K (6-bit), CIE193150% |
| response time | 14/11 (Typ.)(Tr/Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3 stringsWLEDWithout Driver |

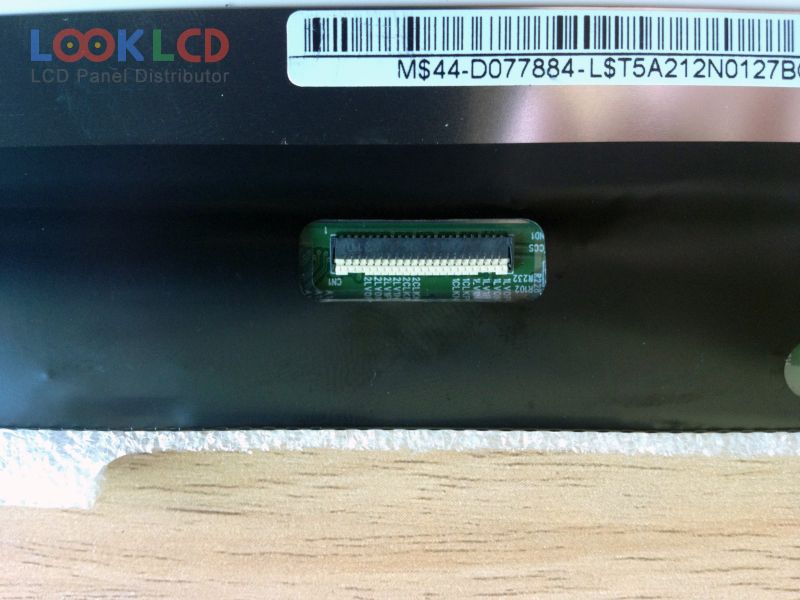

| signal interface | LVDS (1 ch, 6-bit), 45 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
