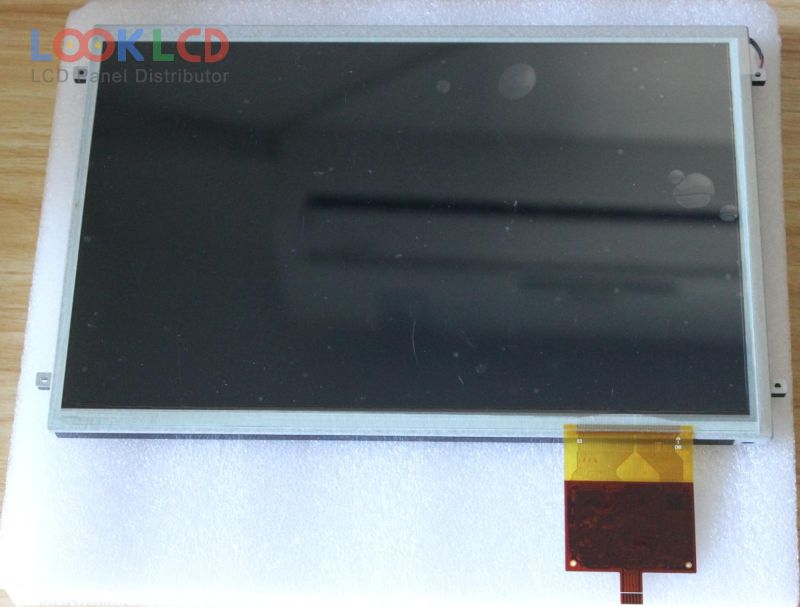

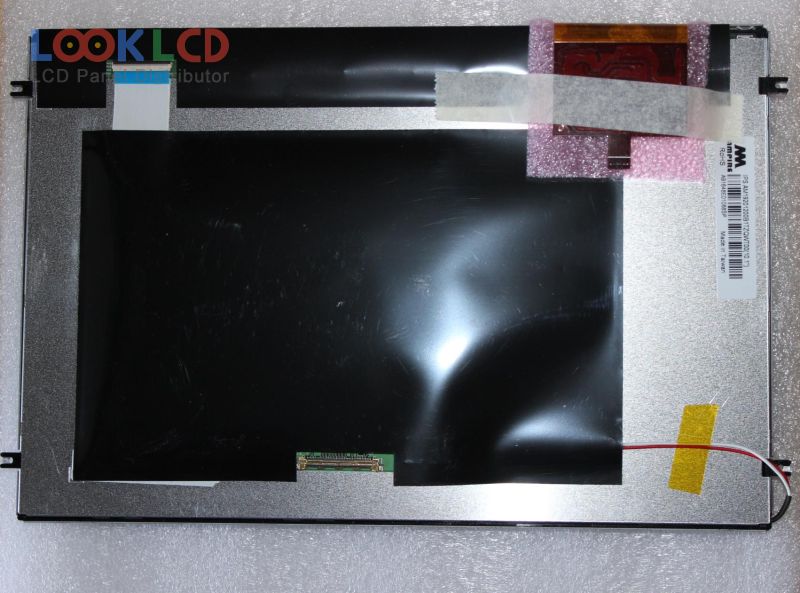

| Nama Wahi | AM-19201200B1TZQW-T00 |
| Waitohu | AMPIRE |
| Rahi | 10.1 |
| Taupānga | IA |
| Whakatau | 1920×1200 |
| Te tito | LCM |
| Tirohanga | 850 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | AMPIRE |
| panel model | AM-19201200B1TZQW-T00 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1920(RGB)×1200 , WUXGA |
| display mode | Normally Black, Transmissive |
| active area | 216.806×135.504 mm |
| outline | 232.65×155.2 mm |
| surface | |
| brightness | 850 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193153% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
