LG Display LM190E09-TLB1 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

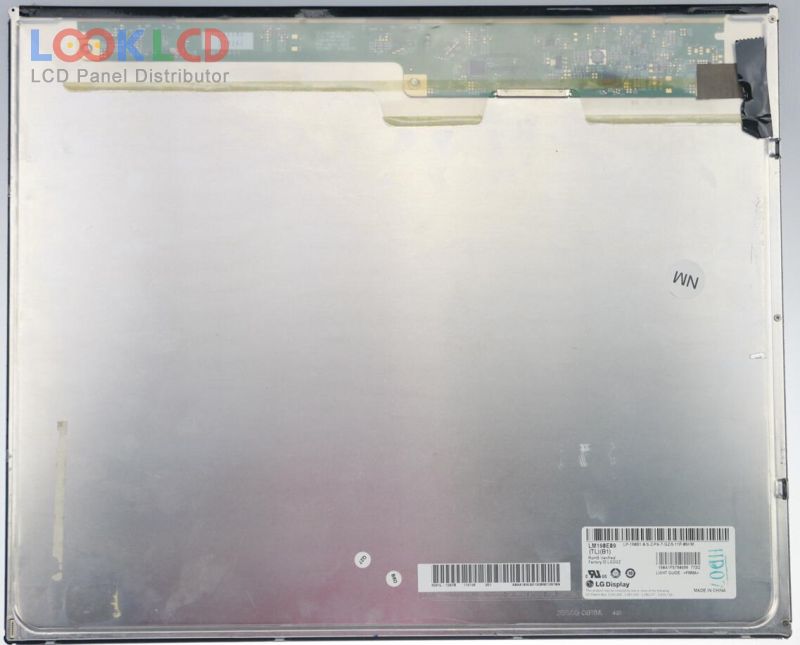

LM190E09-TLB1

LM190E09-TLB1
LM190E09-TLB1
LM190E09-TLB1 thumb LM190E09-TLB1 thumb
Waitohu
LG Display
Rahi
19.0
Taupānga
DMPC
Whakatau
1280×1024
Te tito
LCM
Tirohanga
250
CR
1000:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
LVDS
In Stock
216
Whakatakotoranga

Nama Wahi LM190E09-TLB1
WaitohuLG Display
Rahi19.0
TaupāngaDMPC
Whakatau1280×1024
Te titoLCM
Tirohanga250
CR1000:1
Nga Tae16.7M
WhakamuriWLED
AtangaLVDS
panel brandLG Display
panel modelLM190E09-TLB1 2 Compatible model
panel type a-Si TFT-LCD , LCM
panel size19.0 inch
resolution1280(RGB)×1024 , SXGA
display modeTN, Normally White, Transmissive
active area376.32×301.056 mm
outline396×324×10.4 mm
surfaceAntiglare, Hard coating (3H)
brightness250 cd/m² (Typ.)
contrast ratio1000:1 (Typ.)
display colors16.7M (6-bit + Hi-FRC), CIE193168%
response time1.3/3.7 (Typ.)(Tr/Td)
viewing angle85/85/75/85 (Typ.)(CR＞10)(L/R/U/D)
frequency60Hz
lamp type4 stringsWLEDWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
