LG Display LM190E0A-SLA1 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

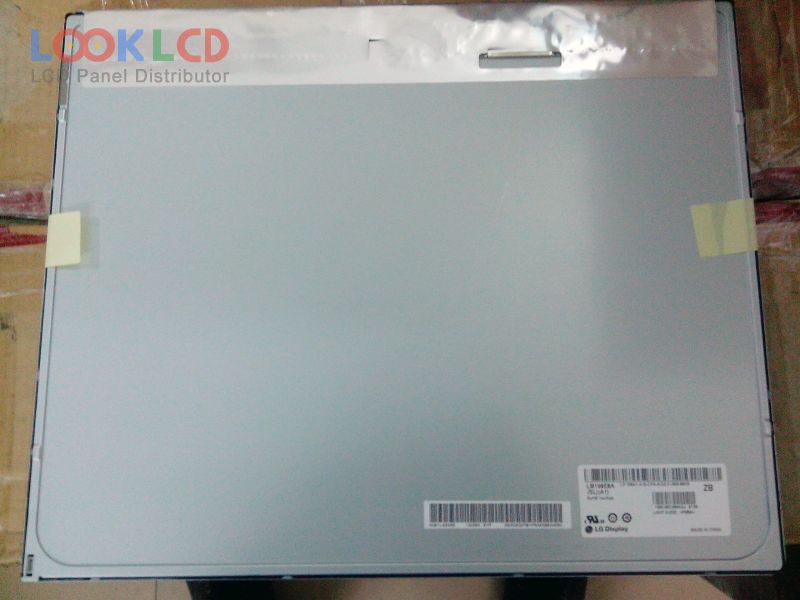

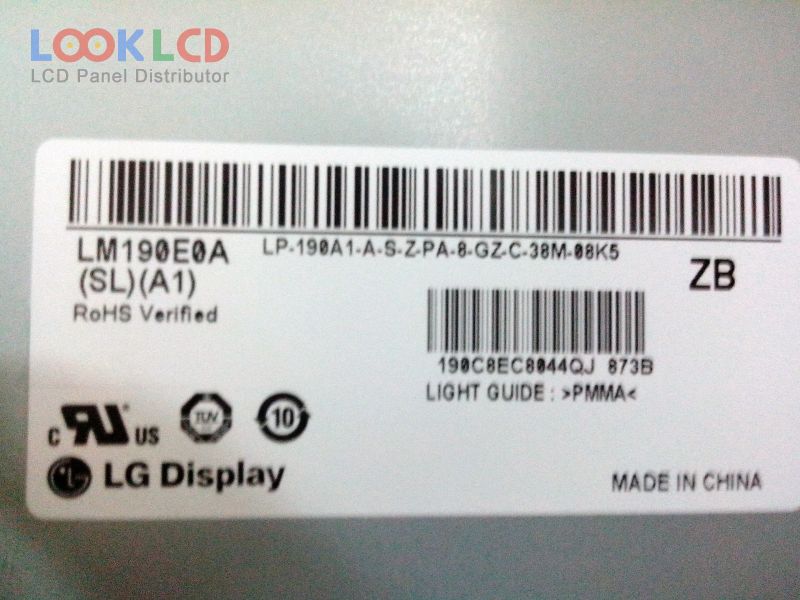

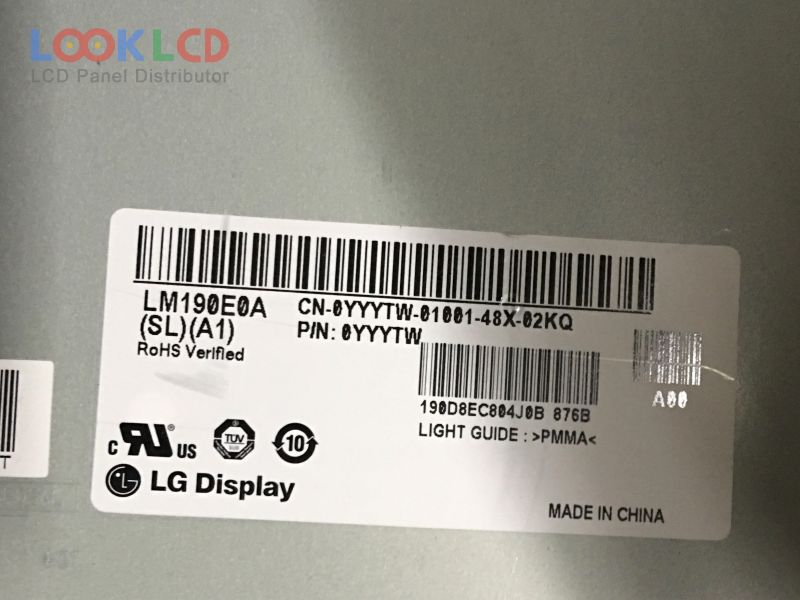

LM190E0A-SLA1

LM190E0A-SLA1
LM190E0A-SLA1
LM190E0A-SLA1
LM190E0A-SLA1 thumb LM190E0A-SLA1 thumb LM190E0A-SLA1 thumb
Waitohu
LG Display
Rahi
19.0
Taupānga
DMPC
Whakatau
1280×1024
Te tito
LCM
Tirohanga
250
CR
1000:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
LVDS
In Stock
16935
Whakatakotoranga

Nama Wahi LM190E0A-SLA1
WaitohuLG Display
Rahi19.0
TaupāngaDMPC
Whakatau1280×1024
Te titoLCM
Tirohanga250
CR1000:1
Nga Tae16.7M
WhakamuriWLED
AtangaLVDS
panel brandLG Display
panel modelLM190E0A-SLA1
panel type a-Si TFT-LCD , LCM
panel size19.0 inch
resolution1280(RGB)×1024 , SXGA
display modeAH-IPS, Normally Black, Transmissive
active area376.32×301.056 mm
outline396×324×10.4 mm
surfaceAntiglare, Hard coating (3H)
brightness250 cd/m² (Typ.)
contrast ratio1000:1 (Typ.)
display colors16.7M (8-bit), CIE193172%
response time14 (Typ.)(G to G)
viewing angle89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type15S2PWLEDWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
Tauira Whanau
LM190E02-A4 LG Display 19.0 1280×1024
LM190E03-TLB4 LG Display 19.0 1280×1024
LM190E05-SL02 LG Display 19.0 1280×1024
LM190E08-TLG2 LG Display 19.0 1280×1024
LM190E08-TLG4 LG Display 19.0 1280×1024
LM190E08-TLGD LG Display 19.0 1280×1024
LM190E08-TLL3 LG Display 19.0 1280×1024
LM190E09-TLB1 LG Display 19.0 1280×1024
LM190E09-TLD1 LG Display 19.0 1280×1024
LM190E09-TLK1 LG Display 19.0 1280×1024
