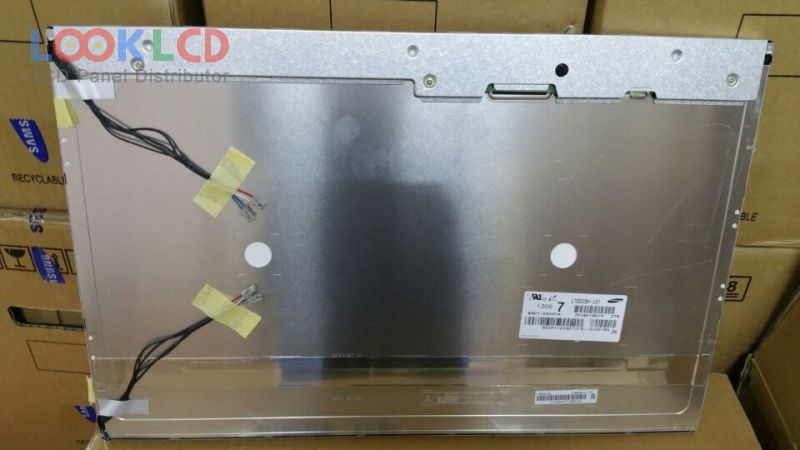

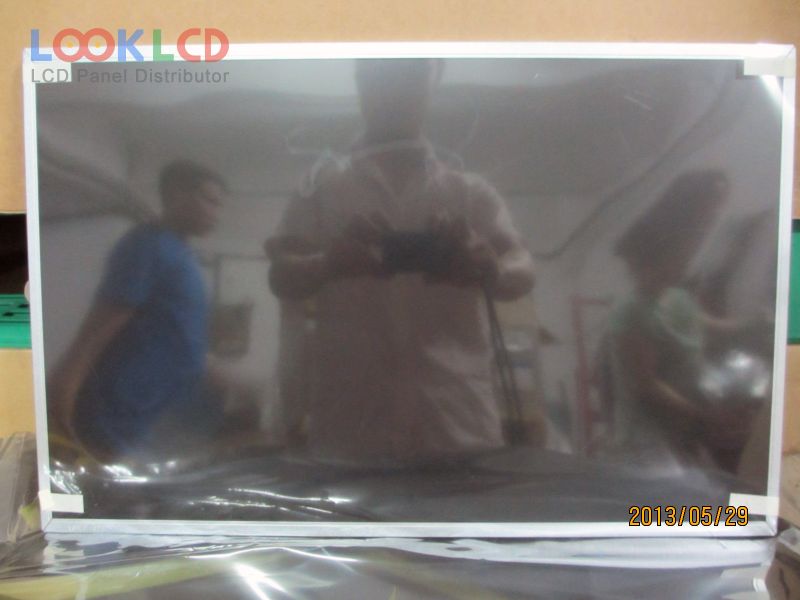

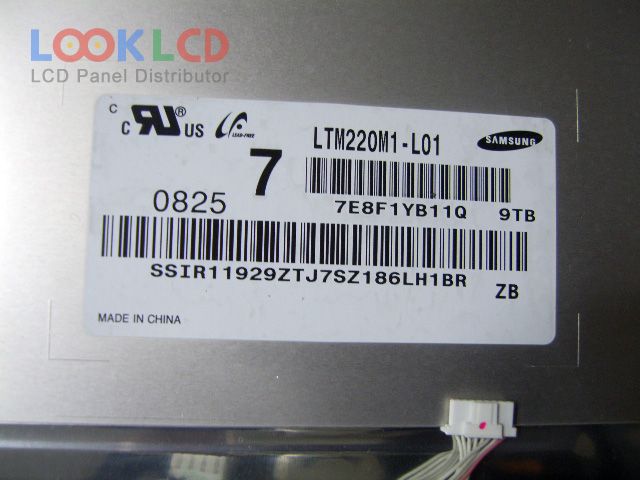

| Nama Wahi | LTM220M1-L01 |
| Waitohu | Samsung |
| Rahi | 22.0 |
| Taupānga | DMPC |
| Whakatau | 1680×1050 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTM220M1-L01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 22.0 inch |
| resolution | 1680(RGB)×1050 , WSXGA+ |
| display mode | TN, Normally White, Transmissive |
| active area | 473.76×296.1 mm |
| outline | 493.7×320.1 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| response time | 1.3/3.7 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
| LM220W1-A2MN | LG Display | 22.0 | 1600×1024 |
| LM220WE1-TLK1 | LG Display | 22.0 | 1680×1050 |
| LTM220CS01 | Samsung | 22.0 | 1920×1200 |
| LTM220M1-L01 | Samsung | 22.0 | 1680×1050 |
| LTM220M1-L02(Glare) | Samsung | 22.0 | 1680×1050 |
| LTM220M3-L02 | Samsung | 22.0 | 1680×1050 |
| LTM220MT05 | Samsung | 22.0 | 1680×1050 |
| LTM220MT09 | Samsung | 22.0 | 1680×1050 |
| LTM220MT12 | Samsung | 22.0 | 1680×1050 |
| M220Z1-L09 | Innolux | 22.0 | 1680×1050 |
| LM190E08-TLGD | LG Display | 19.0 | 1280×1024 |
| LM201W01-STB1 | LG Display | 20.1 | 1680×1050 |
| LM220WE5-TLA1 | LG Display | 22.0 | 1680×1050 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LTM15C423S | TOSHIBA | 15.0 | 1024×768 |
| LTM201M2-L02 | Samsung | 20.1 | 1680×1050 |
| M170E5-L0A | Innolux | 17.0 | 1280×1024 |
| M190EG02 V9 | AUO | 19.0 | 1280×1024 |
| M240HW02 V7 | AUO | 24.0 | 1920×1080 |
| M270HW02 V1 | AUO | 27.0 | 1920×1080 |
