| Nama Wahi | LTM220MT05 |
| Waitohu | Samsung |
| Rahi | 22.0 |
| Taupānga | DMPC |
| Whakatau | 1680×1050 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |

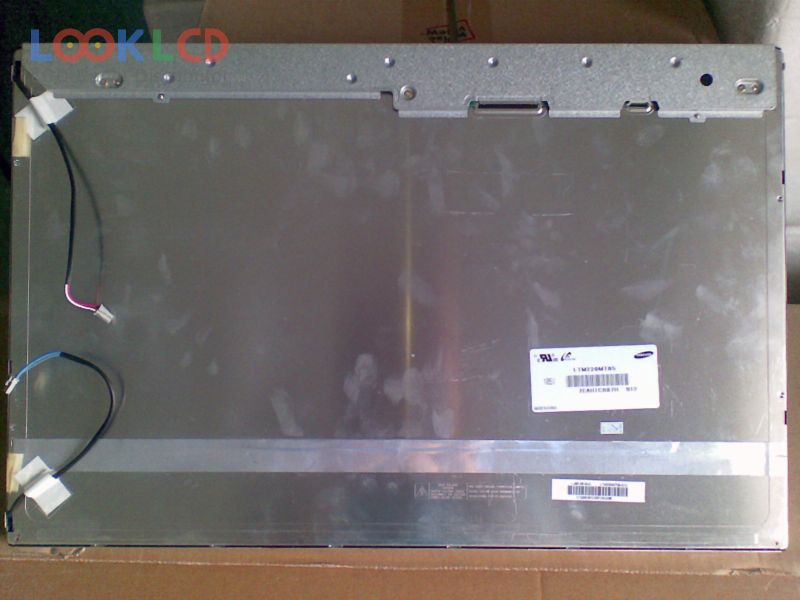

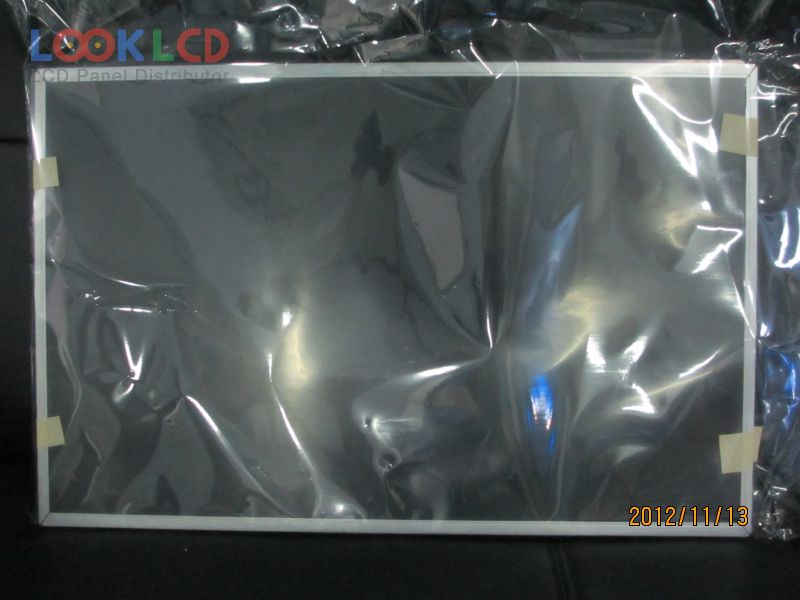

| panel brand | SAMSUNG |

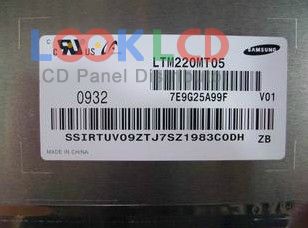

| panel model | LTM220MT05 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 22.0 inch |
| resolution | 1680(RGB)×1050 , WSXGA+ |
| display mode | TN, Normally White, Transmissive |
| active area | 473.76×296.1 mm |
| outline | 493.7×320.1×17 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| response time | 5 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
