LG Display LM190E05-SL03 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

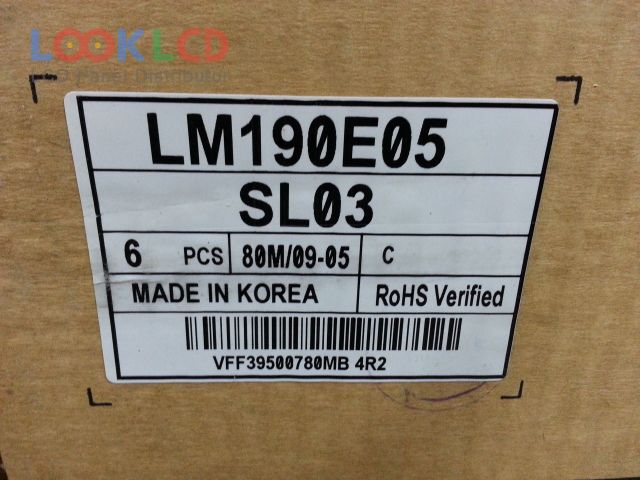

LM190E05-SL03

LM190E05-SL03
LM190E05-SL03 thumb
Waitohu
LG Display
Rahi
19.0
Taupānga
DMPC
Whakatau
1280×1024
Te tito
LCM
Tirohanga
230
CR
800:1
Nga Tae
16.7M
Whakamuri
CCFL
Atanga
LVDS
In Stock
4398
Whakatakotoranga

Nama Wahi LM190E05-SL03
WaitohuLG Display
Rahi19.0
TaupāngaDMPC
Whakatau1280×1024
Te titoLCM
Tirohanga230
CR800:1
Nga Tae16.7M
WhakamuriCCFL
AtangaLVDS
panel brandLG.Philips LCD
panel modelLM190E05-SL03
panel type a-Si TFT-LCD , LCM
panel size19.0 inch
resolution1280(RGB)×1024 , SXGA
display modeIPS, Normally Black, Transmissive
active area376.32×301.056 mm
outline396×324×20.5 mm
surfaceAntiglare, Hard coating (3H)
brightness230 cd/m² (Typ.)
contrast ratio800:1 (Typ.)
display colors16.7M (8-bit), CIE193170%
response time7/11 (Typ.)(Tr/Td); 14 (Typ.)(G to G)
viewing angle89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type4 pcsCCFLWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage12.0V (Typ.)
applicationDMPC
