LG Display LM170E01-A6 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

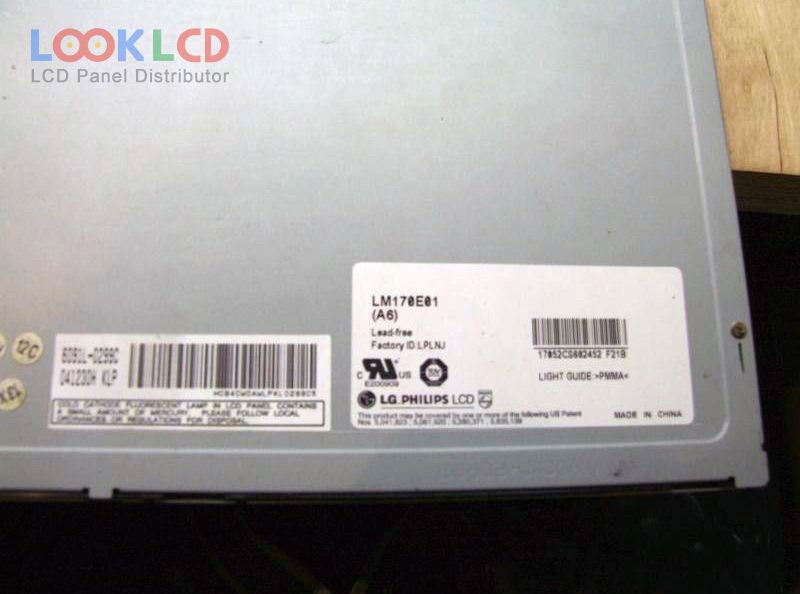

LM170E01-A6

LM170E01-A6
LM170E01-A6 thumb
Waitohu
LG Display
Rahi
17.0
Taupānga
DMPC
Whakatau
1280×1024
Te tito
LCM
Tirohanga
250
CR
500:1
Nga Tae
16.2M
Whakamuri
CCFL
Atanga
LVDS
In Stock
8724
Whakatakotoranga

Nama Wahi LM170E01-A6
WaitohuLG Display
Rahi17.0
TaupāngaDMPC
Whakatau1280×1024
Te titoLCM
Tirohanga250
CR500:1
Nga Tae16.2M
WhakamuriCCFL
AtangaLVDS
panel brandLG.Philips LCD
panel modelLM170E01-A6
panel type a-Si TFT-LCD , LCM
panel size17.0 inch
resolution1280(RGB)×1024 , SXGA
display modeTN, Normally White, Transmissive
active area337.92×270.336 mm
outline358.5×296.5×17.5 mm
surfaceAntiglare, Hard coating (3H)
brightness250 cd/m² (Typ.)
contrast ratio500:1 (Typ.)
display colors16.2M (6-bit + FRC), CIE193172%
response time3/9 (Typ.)(Tr/Td)
viewing angle70/70/75/65 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type4 pcsCCFLWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
