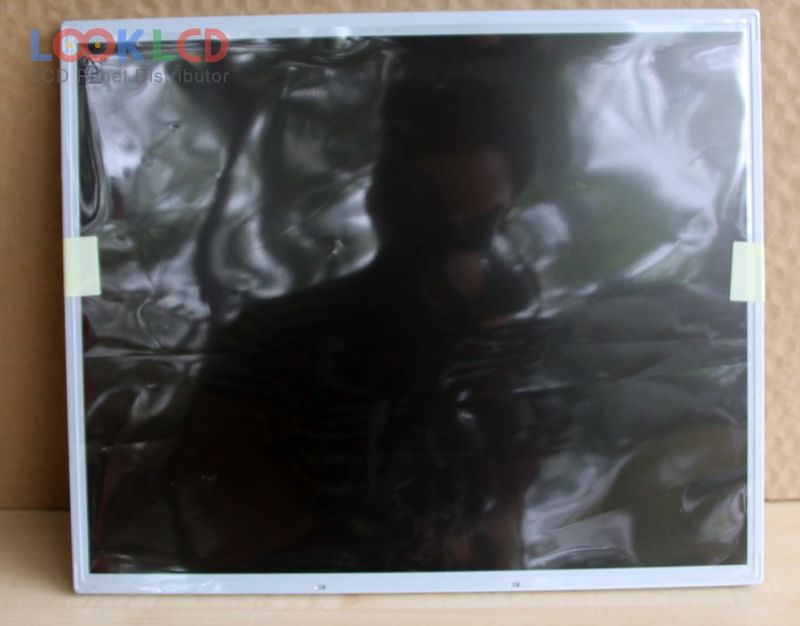

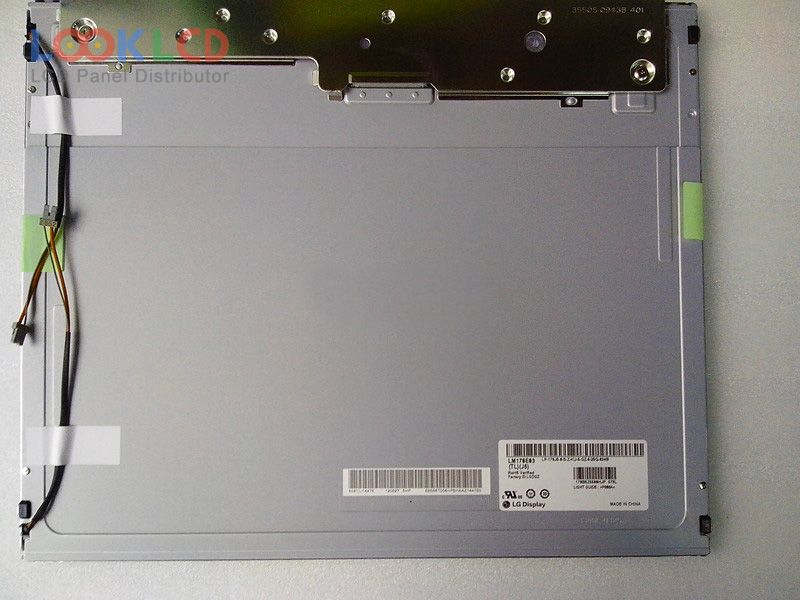

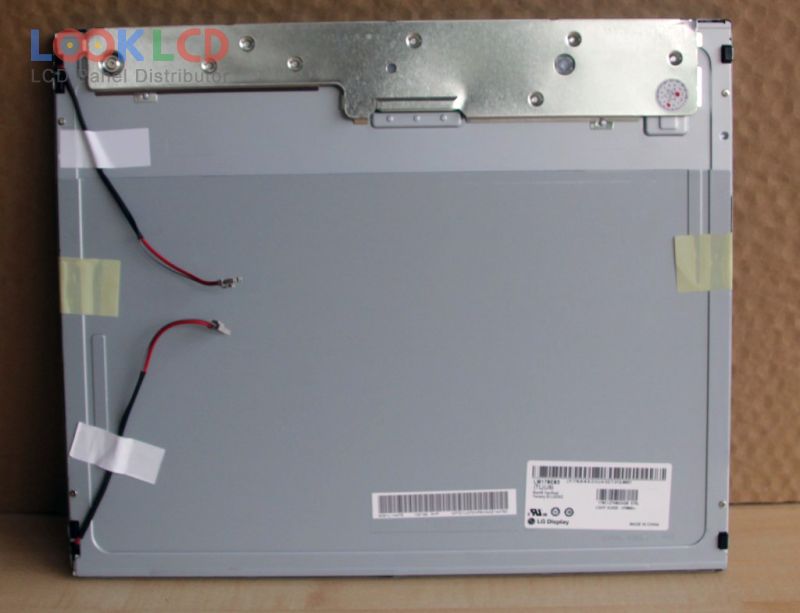

| Nama Wahi | LM170E03-TLJ5 |
| Waitohu | LG Display |
| Rahi | 17.0 |
| Taupānga | DMPC |
| Whakatau | 1280×1024 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | LG Display |
| panel model | LM170E03-TLJ5 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 17.0 inch |
| resolution | 1280(RGB)×1024 , SXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 337.92×270.336 mm |
| outline | 358.5×296.5×14 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC) |
| response time | 1.2/3.8 (Typ.)(Tr/Td) |
| viewing angle | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
