| Nama Wahi | ED090NA-01H |
| Waitohu | Innolux |
| Rahi | 9.0 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | Assembly |
| Tirohanga | |
| CR | 700:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |

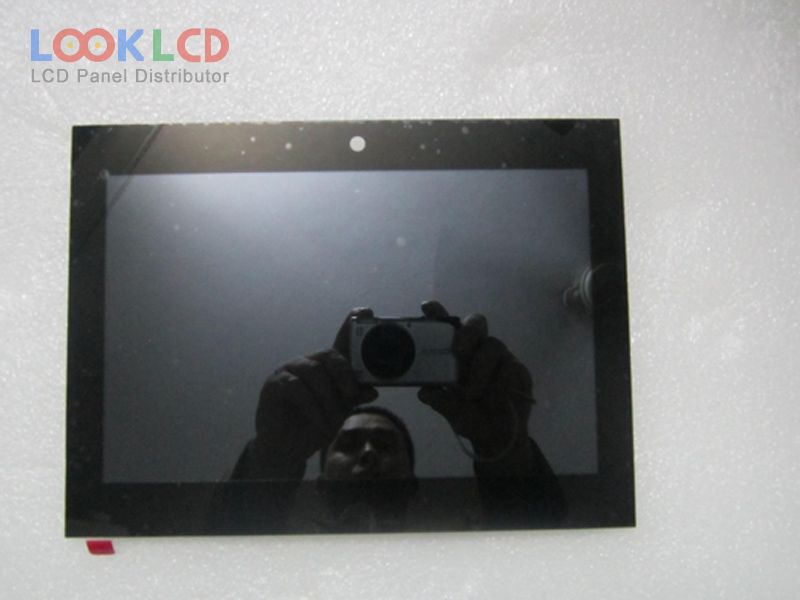

| panel brand | CHIMEI INNOLUX |

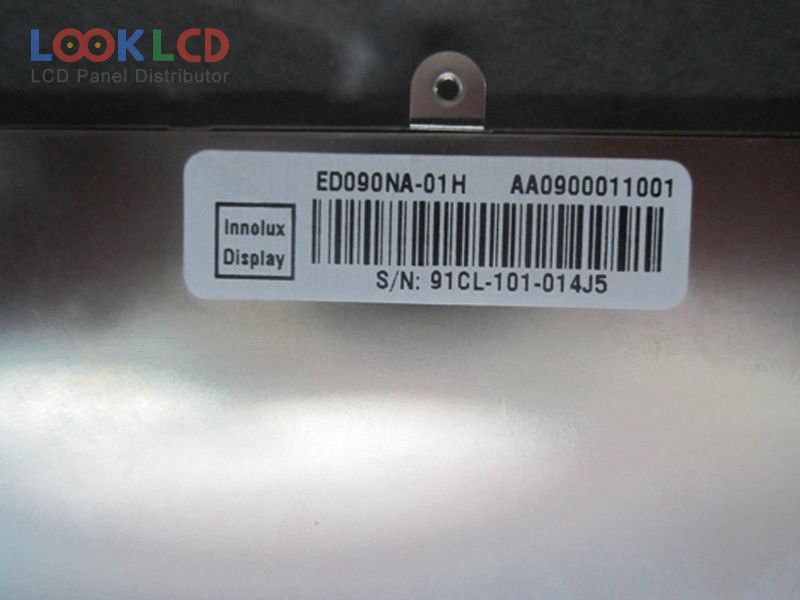

| panel model | ED090NA-01H |
| panel type | a-Si TFT-LCD , Assembly |
| panel size | 9.0 inch |
| resolution | 1280(RGB)×800 , WXGA |
| active area | 193.92×121.2 mm |
| surface | |
| brightness | |
| contrast ratio | 700:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| viewing angle | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| signal interface | LVDS (1 ch, 6/8-bit) |
| application | PAD |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN10 | Innolux | 9.0 | 800×480 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
| B070EAN01.6 | AUO | 7.0 | 800×1280 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP125WH2-SPT1 | LG Display | 12.5 | 1366×768 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
