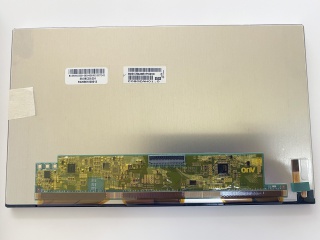

| Nama Wahi | C090EAN01.0 |
| Waitohu | AUO |
| Rahi | 9.0 |
| Taupānga | Automotive Display |
| Whakatau | 1280×720 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| brand | AUO |
| model | C090EAN01.0 |
| diagonal size | 9.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1280(RGB)×720 [WXGA] 163PPI |
| configuration | RGB Vertical Stripe |
| active area | 198.72(H)×111.78(V) mm |
| outline dim. | - |
| luminance | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| view direction | Symmetry |
| response time | 15/15 (Max.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| operating mode | AHVA, Normally Black, Transmissive |
| support color | 16.7M 70% NTSC |
| light source | WLED |
| weight | - |
| designed for | Automotive Display |
| frame rate | 60Hz |
| touch panel | Without |
| interface type | LVDS (1 ch, 8-bit) |
| environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
