| Nama Wahi | TX20D16VM2BAA |
| Waitohu | KOE |
| Rahi | 8.0 |
| Taupānga | IA |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 200:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |

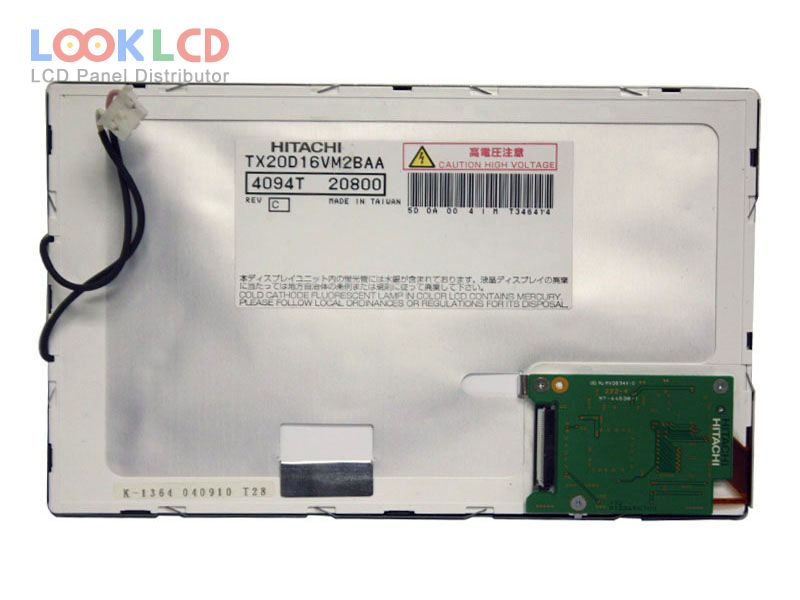

| panel brand | HITACHI |
| panel model | TX20D16VM2BAA |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 174×104.4 mm |
| outline | 189×120 mm |
| surface | Antiglare |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 200:1 (Typ.) |
| display colors | 262K (6-bit), CIE193160% |
| response time | 20/10 (Typ.)(Tr/Td) |
| viewing angle | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
