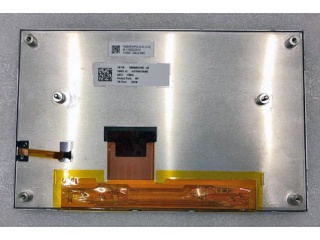

| Nama Wahi | TM080RDHP07 |
| Waitohu | TIANMA |
| Rahi | 8.0 |
| Taupānga | Automotive Display |
| Whakatau | 800×480 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | Parallel |
| brand | TIANMA |
| diagonal size | 8.0 inch |
| pixel format | 800(RGB)×480 [WVGA] 116PPI |
| active area | 174(H)×104.4(V) mm |
| bezel area | 177(H)×107.4(V) mm |
| luminance | 600 cd/m² (Typ.) |
| view direction | Symmetry |
| viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| support color | 16.7M 71% NTSC |
| weight | TBD |
| frame rate | 60Hz |
| interface type | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| power supply | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| model | TM080RDHP07 |
| type | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| outline dim. | 190.4(H)×120.7(V) ×16.1(D) mm |
| treatment | Antiglare |
| contrast ratio | 1000:1 (Typ.) (TM) |
| response time | 50 (Max.)(Tr+Td) |
| operating mode | SFT, Normally Black, Transmissive |
| light source | WLED [8S2P] , 20K hours , W/O Driver |
| designed for | Automotive Display |
| touch panel | Without |
