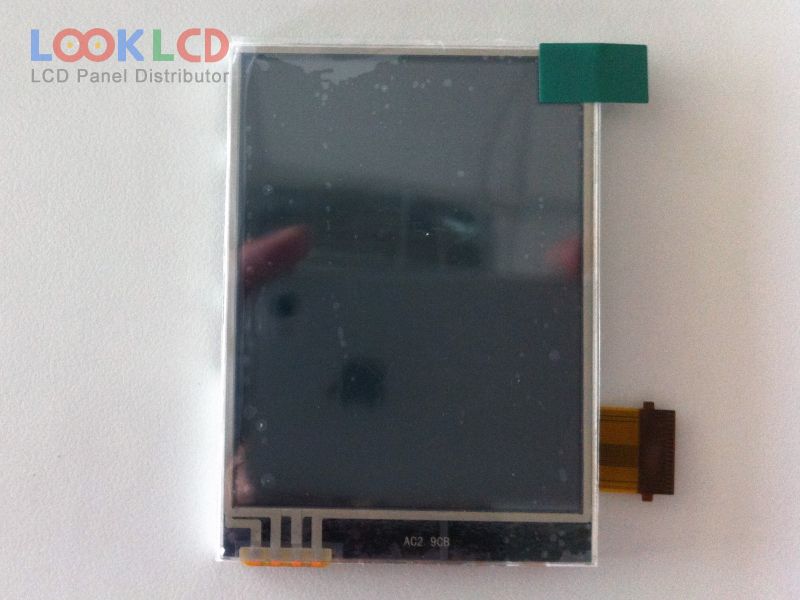

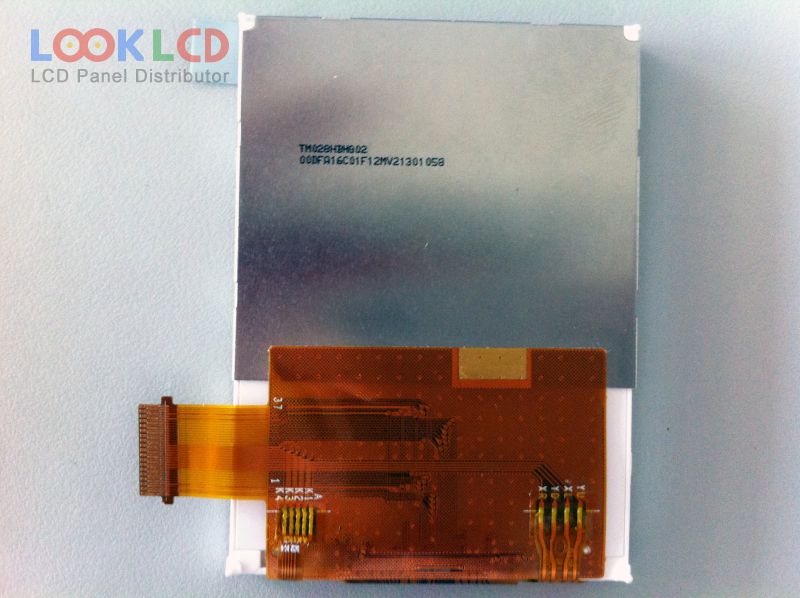

| Nama Wahi | TM028HBHG02 |
| Waitohu | Tianma |
| Rahi | 2.8 |
| Taupānga | MPH |
| Whakatau | 240×320 |
| Te tito | LCM |
| Tirohanga | 210 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | CPU |
| panel brand | TIANMA |

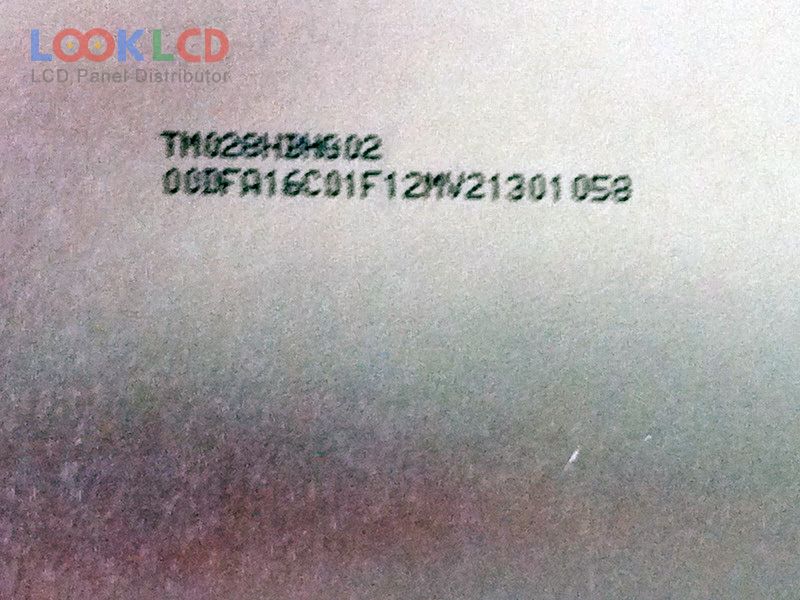

| panel model | TM028HBHG02 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 2.8 inch |
| resolution | 240(RGB)×320 , QVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 43.2×57.6 mm |
| outline | 50×69.2×4.4 mm |
| surface | Clear |
| brightness | 210 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193165% |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 1S4PWLEDWithout Driver |
| signal interface | 8/16-bit 6080/8080 parallel, 37 pins |
| input voltage | (1.8/2.8)/2.8V (Typ.)(VCC/VCI) |
| application | MPH |
