| Nama Wahi | BTL282440-310L |
| Waitohu | BOE |
| Rahi | 2.8 |
| Taupānga | MPH |
| Whakatau | 240×400 |
| Te tito | LCM |
| Tirohanga | 190 |
| CR | 240:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | CPU |

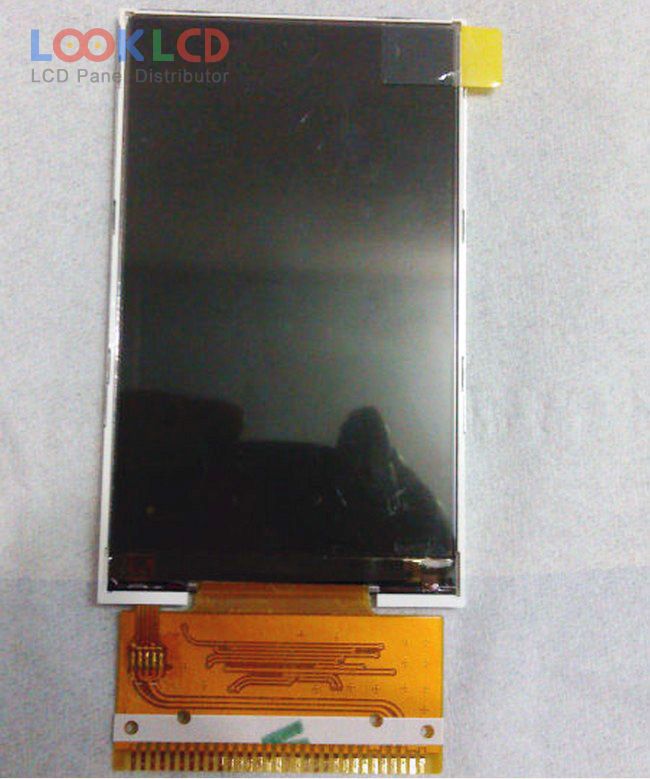

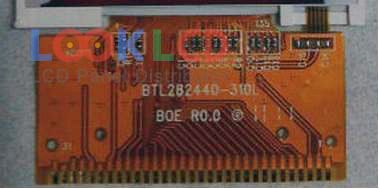

| panel brand | BOE |
| panel model | BTL282440-310L |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 2.8 inch |
| resolution | 240(RGB)×400 , WQVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 36.72×61.2 mm |
| outline | 42.5×71.4 mm |
| surface | Clear |
| brightness | 190 cd/m² (Typ.) |
| contrast ratio | 240:1 (Typ.) |
| display colors | 262K |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 55/55/60/30 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1S4PWLEDWithout Driver |
| signal interface | CPU, 31 pins |
| input voltage | 2.8/2.8V (Typ.)(IOVCC/VCC) |
| application | MPH |
| 28QVF1H | SII | 2.8 | 240×320 |
| 28QVF2H | SII | 2.8 | 240×320 |
| 28QVF2J | SII | 2.8 | 240×320 |
| BTL282440-310L | BOE | 2.8 | 240×400 |
| ET028002DHU | EDT | 2.8 | 240×320 |
| LMS283GF11 | Samsung | 2.8 | 240×320 |
| LTV280QV-F02 | Samsung | 2.8 | 320×240 |
| PJ028MA-01A | Innolux | 2.8 | 240×320 |
| TD028STEB2 | TPO | 2.8 | 240×320 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
| ACX565AKM-7 | SONY | 3.5 | 800×480 |
| H446TAN01.1 | AUO | 4.5 | 720×1280 |
| H497TLB01.4 | AUO | 5.0 | 720×1280 |
| HVA37WV1-ME0 | HYDIS | 3.7 | 480×800 |
| LH530WX1-SH02 | LG Display | 5.3 | 720×1280 |
| LH600WF2-SD01 | LG Display | 6.0 | 1080×1920 |
| LMS283GF11 | Samsung | 2.8 | 240×320 |
| TM022GDH11 | Tianma | 2.2 | 176×220 |
| TM024HDH36 | Tianma | 2.4 | 240×320 |
| TM028LDH01 | Tianma | 2.8 | 240×400 |
