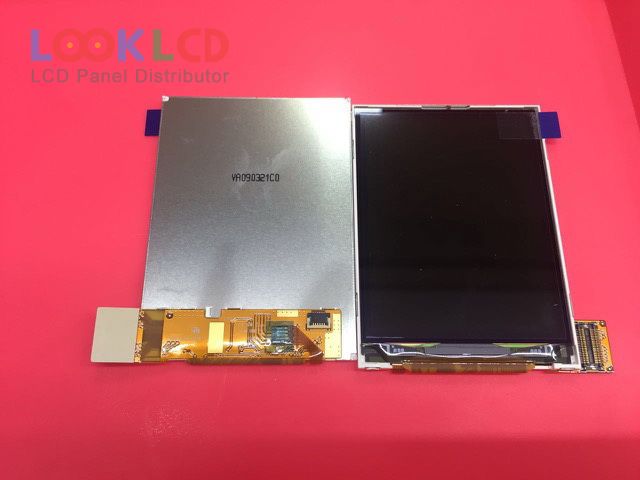

| Nama Wahi | LMS283GF11 |
| Waitohu | Samsung |
| Rahi | 2.8 |
| Taupānga | MPH |
| Whakatau | 240×320 |
| Te tito | LCM |
| Tirohanga | 330 |
| CR | 290:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | CPU |
| panel brand | SAMSUNG |
| panel model | LMS283GF11 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 2.8 inch |
| resolution | 240(RGB)×320 , QVGA |
| display mode | TN, Normally White, TMR |
| active area | 43.2×57.6 mm |
| outline | 50×69.2 mm |
| surface | |
| brightness | 330 cd/m² (Typ.) |
| contrast ratio | 290 : 1 (Typ.) |
| display colors | 262K (6-bit), CIE193160% |
| response time | 35 (Typ.)(Tr+Td) |
| viewing angle | 50/50/50/20 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1S4PWLEDWithout Driver |
| signal interface | CPU, 40 pins |
| input voltage | 1.8/2.8V (Typ.)(VCC/VCI) |
| application | MPH |
