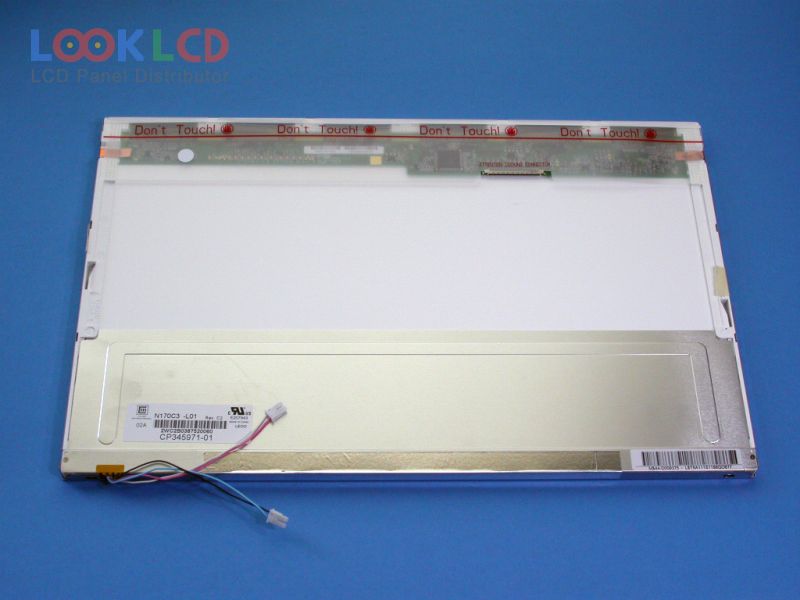

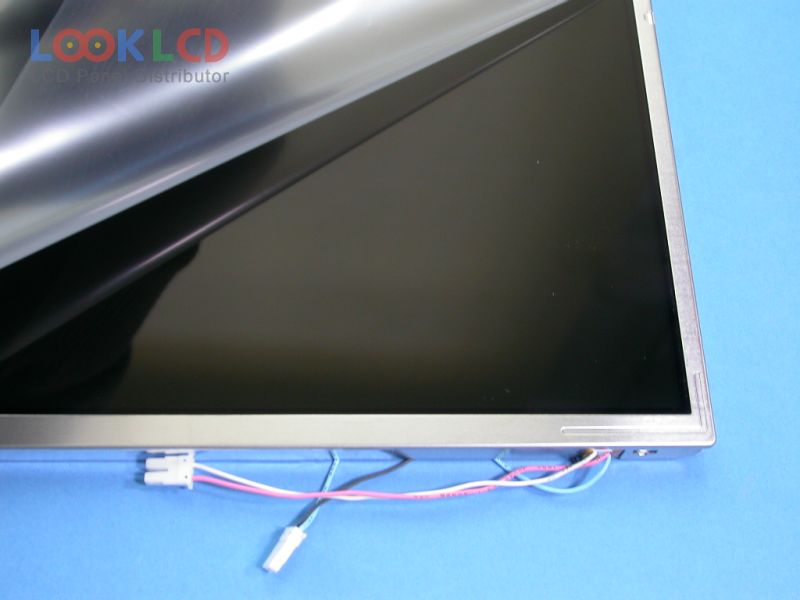

| Nama Wahi | N170C3-L01 |
| Waitohu | Innolux |
| Rahi | 17.0 |
| Taupānga | NBPC |
| Whakatau | 1440×900 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | CMO |
| panel model | N170C3-L01 3 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 17.0 inch |
| resolution | 1440(RGB)×900 , WXGA+ |
| display mode | TN, Normally White, Transmissive |
| active area | 367.2×229.5 mm |
| outline | 382.2×246.8×10 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit), CIE193172% |
| response time | 3/7 (Typ.)(Tr/Td) |
| viewing angle | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
