AUO M240HW01 V1 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

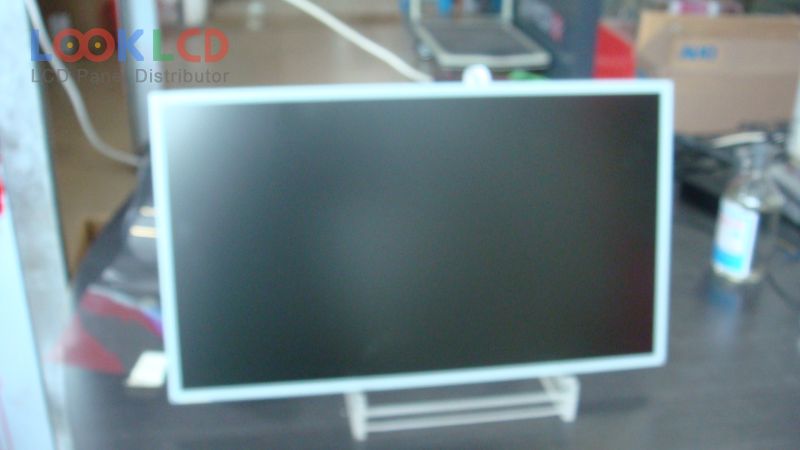

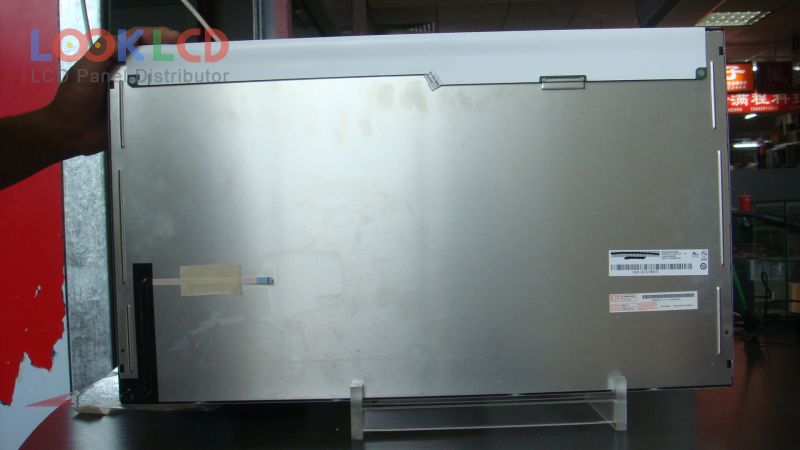

M240HW01 V1

M240HW01 V1
M240HW01 V1
M240HW01 V1 thumb M240HW01 V1 thumb
Waitohu
AUO
Rahi
24.0
Taupānga
DMPC
Whakatau
1920×1080
Te tito
LCM
Tirohanga
250
CR
1000:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
LVDS
In Stock
14477
Whakatakotoranga

Nama Wahi M240HW01 V1
WaitohuAUO
Rahi24.0
TaupāngaDMPC
Whakatau1920×1080
Te titoLCM
Tirohanga250
CR1000:1
Nga Tae16.7M
WhakamuriWLED
AtangaLVDS
panel brandAUO
panel modelM240HW01 V1
panel type a-Si TFT-LCD , LCM
panel size24.0 inch
resolution1920(RGB)×1080 , FHD
display modeTN, Normally White, Transmissive
active area531.36×298.89 mm
outline556×323.2×15.05 mm
surfaceAntiglare, Hard coating (3H)
brightness250 cd/m² (Typ.)
contrast ratio1000:1 (Typ.)
display colors16.7M (6-bit + Hi-FRC), CIE193172%
response time3.4/1.6 (Typ.)(Tr/Td); 2 (Typ.)(G to G)
viewing angle85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
Tauira Whanau
M240HTD01.0 AUO 24.0 1920×1080
M240HTN01.2 AUO 24.0 1920×1080
M240HVN01.0 AUO 24.0 1920×1080
M240HVN02.0 AUO 24.0 1920×1080
M240HW01 V0 AUO 24.0 1920×1080
M240HW01 V2 AUO 24.0 1920×1080
M240HW01 VB AUO 24.0 1920×1080
M240HW02 V1 AUO 24.0 1920×1080
M240HW02 V5 AUO 24.0 1920×1080
M240HW02 V6 AUO 24.0 1920×1080
