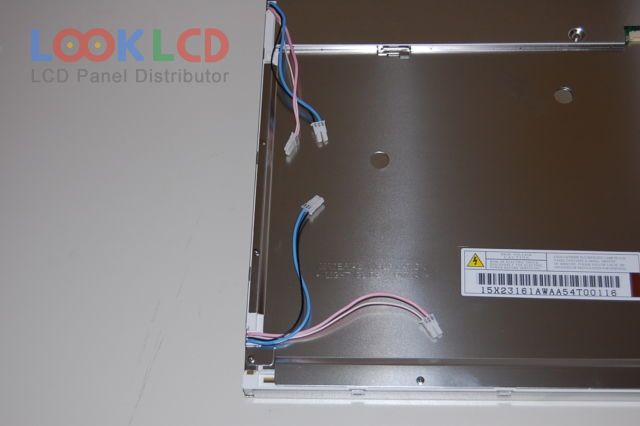

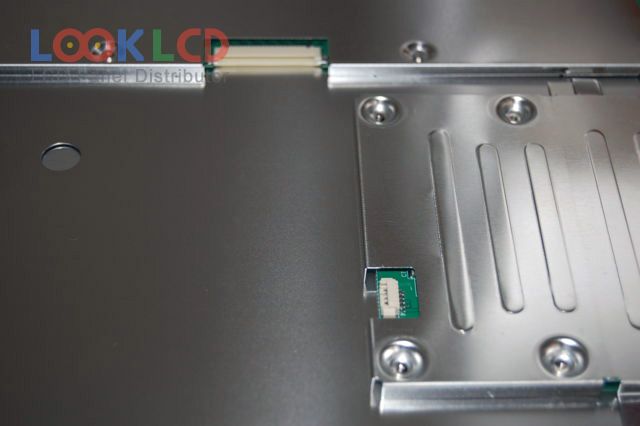

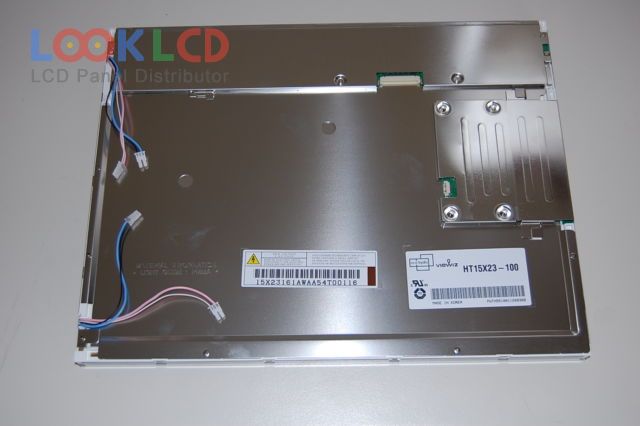

| Nama Wahi | HT15X23-100 |
| Waitohu | HYDIS |
| Rahi | 15.0 |
| Taupānga | DMPC |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 280 |
| CR | 450:1 |
| Nga Tae | 16.2M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | BOE HYDIS |
| panel model | HT15X23-100 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.0 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | AFFS, Normally Black, Transmissive |
| active area | 304.128×228.096 mm |
| outline | 331.6×254.7 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 280 cd/m² (Typ.) |
| contrast ratio | 450:1 (Typ.) |
| display colors | 16.2M (6-bit + FRC), CIE193165% |
| response time | 40 (Typ.)(Tr+Td) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | DMPC |
