| Nama Wahi | LTL101AL06-002 |
| Waitohu | Samsung |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 900:1 |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SAMSUNG |

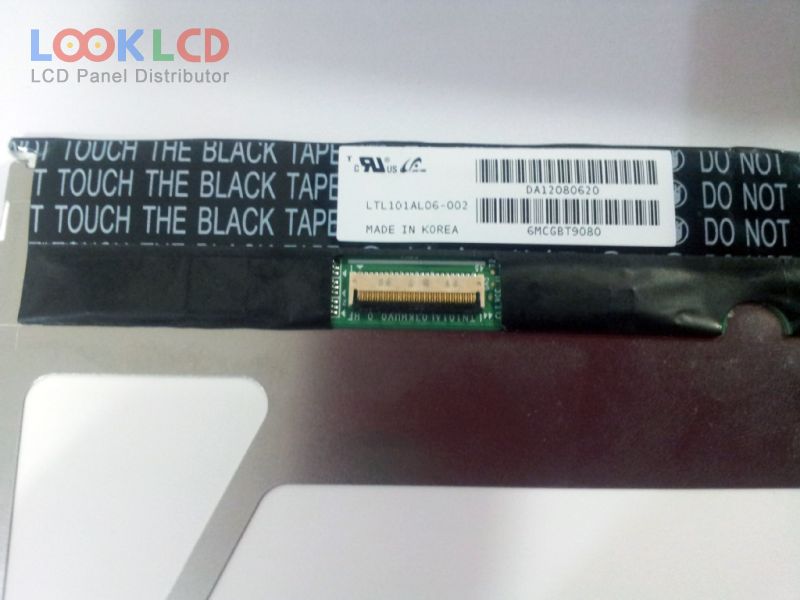

| panel model | LTL101AL06-002 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | PLS, Normally Black, Transmissive |
| active area | 216.96×135.6 mm |
| outline | 228.21×148.86 mm |
| surface | |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 900:1 (Typ.) |
| display colors | 16.2M (6-bit + FRC), CIE193150% |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 45 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| BP096WX1-100 | BOE | 9.6 | 800×1280 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HV070WS1-105 | HYDIS | 7.0 | 1024×600 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| LD070WX5-SM01 | LG Display | 7.0 | 900×1440 |
| LP094WX1-SLA1 | LG Display | 9.4 | 1280×800 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
