| Nama Wahi | LA084X02-SL01 |
| Waitohu | LG Display |
| Rahi | 8.4 |
| Taupānga | Automotive Display |
| Whakatau | 1024×768 |
| Te tito | LCM, a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.2M |
| Whakamuri | 10S3P |
| Atanga | LVDS |
| manufacturer | LG Display |

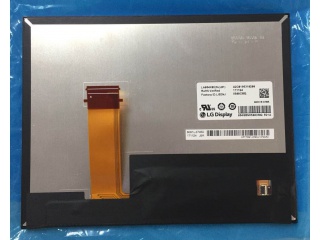

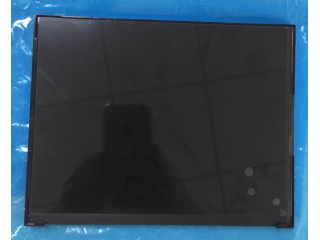

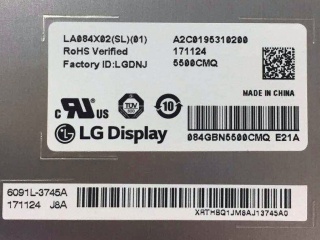

| model name | LA084X02-SL01 |
| screen size | 8.4 inch |
| screen type | LCM, a-Si TFT-LCD |
| pixel number | 1024(RGB)×768 (XGA) 152PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 170.496 × 127.872 (H×V) |
| outline(mm) | 184.5 × 143 × 9.95 (H×V×D) |
| luminance | 1200 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| response | 40 (Max.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | IPS, Normally Black, Transmissive |
| color depth | 16.2M 70% NTSC |
| backlight | 10S3P WLED , No Driver |
| mass | 255/260g (Typ./Max.) |
| used for | Automotive Display |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | LVDS (1 ch, 8-bit) , FPC 40 pins |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 m/s²) |
