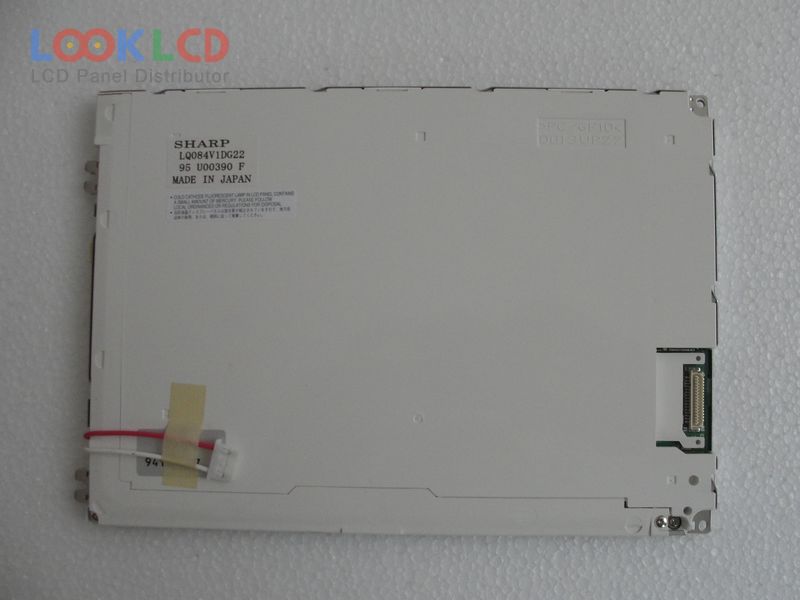

| Nama Wahi | LQ084V1DG22 |
| Waitohu | SHARP |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 250:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | SHARP |
| panel model | LQ084V1DG22 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.88×129.6 mm |
| outline | 216×152.4 mm |
| surface | Antiglare (Haze 28%), Hard coating (3H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 250:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 20/40 (Typ.)(Tr/Td) |
| viewing angle | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 1 pcsCCFL |
| signal interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| input voltage | 3.3/5.0V (Typ.)(VCC) |
| application | IA |
